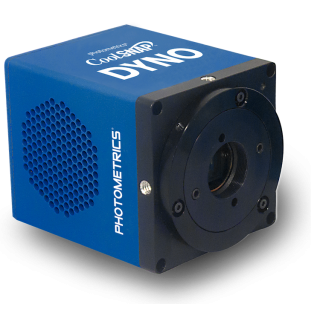

[Discontinued] CoolSNAP™ DYNO > Q-Imaging

DYNO CCD Camera , 1940 x 1460 imaging array, 4.54 x 4.54 μm pixels

The CoolSNAP MYO is a high resolution, high sensitivity camera for moderate to low-light life
science applications. This unique cooled CCD provides 4.54μm pixel pitch, 14-bit digitization at
20MHz, enabling high spatial resolution and an optimized frame rate for time-lapse cell imaging.
Its 2.8 Megapixels and a high Quantum Efficiency enables sensitive imaging with the option for
binning for a higher dynamic range as well as increased signal-to-noise performance ? all while
providing an ideal pixel pitch for microscopy.

Specifications
CCD Sensor	Sony® ICX-674 Interline CCD
CCD Format	1940x1460 imaging array  4.54x4.54 μm pixels  8.8 x 6.6 mm imaging area (11mm diagonal, 2/3” format)
Linear Full-Well	12,000e-
Read Noise	< 4.5e-
Nonlinearity	< 1%
Digitization	20MHz, 10MHz, 1.25MHz
Cooling	0°C
Dark Current	0.005 e-/pixel/second @ 0°C
Operating Environment	0 to 30°C ambient, 0-80% relative humidity non-condensing
Triggering	Trigger First Mode  Strobe Mode  Bulb Mode
Power Requirements	5V DC, 4A Maximum
