OASIS Micro > Mightex

In Vivo Cellular-Resolution Optogenetics and Imaging System

Microscope Imaging and Cellular-Resolution Optogenetics Platform

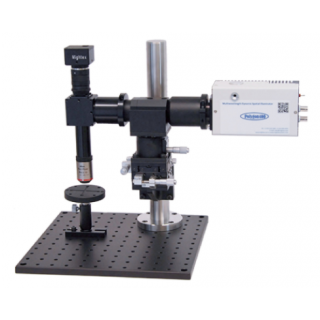

The OASIS Micro is a ground-breaking microscope platform for all-optical cellular-resolution optogenetics and imaging in small cortical or deep-brain areas of a head-fixed animal. Simultaneously image small cortical or deep brain regions and perform neuron-specific targeted optogenetics with the addition of Mightex’s Polygon pattern illuminator.

* Small cortical area or deep-brain for in vivo imaging and optogenetics

* Cellular-resolution optogenetics

* Reconfigurable platform

* Designed for in vivo experiments

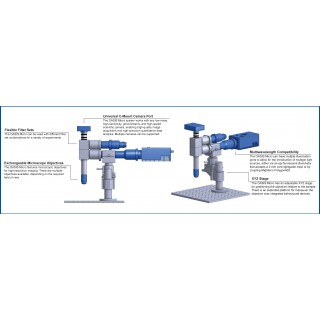

Reconfigurable In Vivo Microscope Platform for Imaging and Optogenetics

Mightex’s OASIS Micro is designed as a reconfigurable optical microscope system for in vivo imaging and optogenetics. The final system can be tailored to performance requirements for unique applications. This can include major features such as adding a second and third illumination source, or a dual-camera imaging system, as well as fine details including compatibility features for certain cameras and objectives.

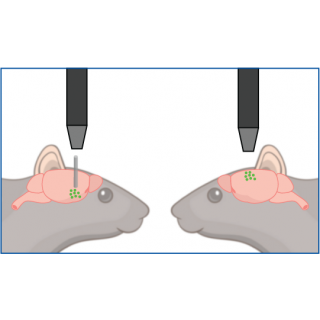

High-Resolution Imaging in the Cortex or Deep-Brain

The OASIS Micro is designed to image the activity of thousands of neuronal populations in a small cortical region or the deep-brain by coupling to a GRIN lens of a head-fixed mouse. The lenses compatible with the OASIS Micro provide high-resolution imaging in vivo.



Cellular-Resolution Optogenetics

Perform cellular-resolution optogenetics or stimulate the entire area with widefield optogenetics. The addition of Mightex’s Polygon to the OASIS Micro platform enables targeted patterned illumination of regions or cells of interest.

Synchronize with Behavioural or Electrophysiology Equipment

Easily synchronize imaging or optogenetics with other lab equipment. Synchronize with your stimulation patterns or imaging with electrophysiology or behavioural equipment.

OASIS Stage and Support Overview



OASIS Stage and Support offers several important customization features. The Stage and Support not only holds the entire system together but also allows for OASIS to translate in the XYZ axis and to be tilted back and forth or side to side so that the user can orient relative to a lilted surface. Manual and motorized versions are also available to choose between.







OASIS Stage & Support Options

Schematic Shows the Manual XYZ  Stage Option with Single Rod Support	List of OASIS Stage Options       1, Manual XYZ Stage      2, Motorized XYZ Stage      3, Manual Tilt Mechanism      4, Motorized Tilt Mechanism      5, Combine Any 2 of Options 1-4	List of OASIS Support Options      1, Single Damped Rod Platform    2, Three Damped Rod platform





Translational stage                        Stereotactic stage

OASIS can translate in the XYZ direction and can also be tilted side to side or front and back.









OASIS Optical Assembly



OASIS Optical Assembly provides a lot of exciting opportunities for customers to tailor their OASIS into a truly unique system tailored for their applications. The biggest decision to make is choosing a Macroscope imagining optics or microscope imaging optics. Microscope option is suitable for applications requiring an optical setup similar to commercial microscopes while Macroscope setups are more suitable when a large field of view is required without sacrificing optical output intensity. Users can also chose (1) the number of filter positions to include (2) To have dual camera ports and (3) which Microscope vendor objectives they would like their system compatible with.





OASIS Optical Assembly Options





Schematic Shows a single cube, single   camera with microscope optics setup.	List of OASIS Optical Assembly Options              1, Microscope Optics                                            2, Macroscope Optics





OASIS Optical Assembly Configurations














OASIS Compatible Objectives If using OASIS Micro most major commercial microscope objectives will be compatible with the system. Just let our support team know which objective you plan to use and they will make sure to select an optical assembly configuration for the vendor objective. Mightex is also able to provide objectives with the OASIS as an add on as well. Let us know your key requirements and we will be glad to make a recommendation. If using OASIS Macro there are three objectives option that the user can choose between This includes a 4X, 2.35X and 1.9X Macro objectives.



For more technical details and specifications, please check:

https://www.mightexbio.com/products/oasis/oasis-micro/
