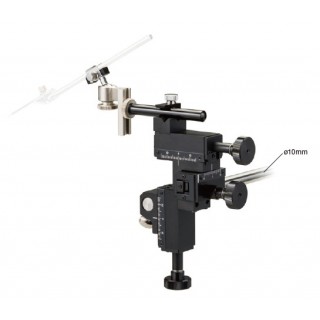

M-152
Manipulator
Three-dimensional coarse manual manipulator with simple design.
This compact, lightweight model offers coarse manipulation only and is very simple to use. A bar mount is provided to enable installation by either a mounting adaptor or magnetic stand. When used in conjunction with a micromanipulator such as the MMO-220C, quick three-dimensional operation is possible in low magnification experiments using a stereo microscope.
* For attachment to the microscope, P-1A height adjustment plate (sold separately) and a suitable mounting adaptor (sold separately) are required.
* The ball joint included with the micromanipulator can be replaced by MMO-220C one-axis oil hydraulic micromanipulator (sold separately).
Specification
Accessories included |
B-8B Ball Joint |
|
Movement Range |
Coarse |
X 25mm, Y 20mm, Z 25mm |
Dimensions/Weight |
W 95 x D 36 x H 135mm, 320g |
|
