pE-100 series for screening fluorescence In direct fit configuration, the pE-100 illumination system is supplied with a fixed single LED wavelength peak and fixed microscope adaptor as specified at time of order. The pE-100 is used on a very wide range of current and older microscopes. Where practicable, CoolLED will supply a suitable adaptor if provided with relevant dimensional information to design an adaptor to fit your particular microscope.

pE-100^wht for transmitted light applications The pE-100^wht illumination system replaces the 100W halogen lamp for transmitted light applications. Microscope adaptors are interchangeable for use on other makes and models of microscopes CoolLED will supply a suitable adaptor if provided with relevant dimensional information to design an adaptor to fit your particular microscope.

The pE-300 Series (pE-300^lite, pE-300^white & pE-300^ultra)  for regular fluorescence and pE-4000 for research fluorescence Microscope adaptors are interchangeable between these CoolLED systems. Whether used in a direct configuration on the pE-300^white or with the pE-Universal Collimator in conjunction with a light guide, an adaptor appropriate for the microscope can easily be fitted or interchanged. You will need to re-align to the optical path of the new microscope. This is a simple task which will only take a few minutes.

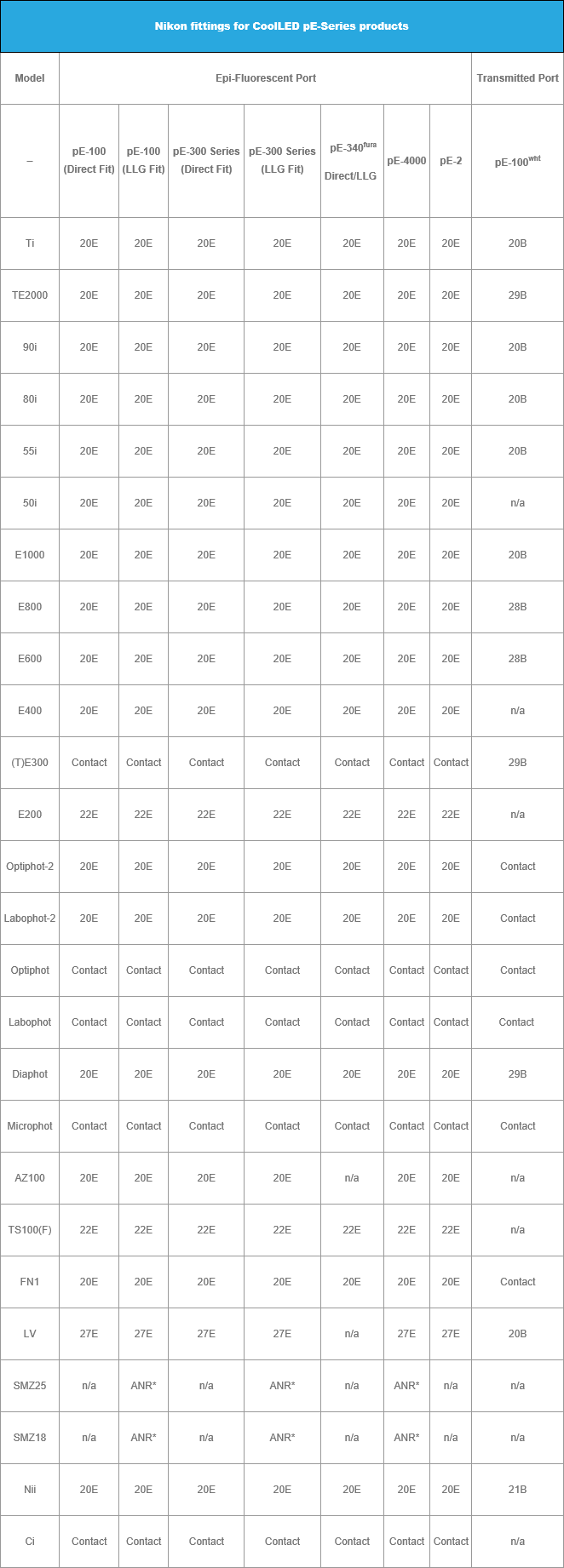

pE-2 for research fluorescence With the pE-2 illumination system, an adaptor fitting will have been supplied when the original product was supplied. You can purchase additional adaptor fittings if you wish to fit to a different microscope. You will need to re-align to the optical path of the new microscope. This is a simple task which will only take a few minutes. Adaptors for the pE-2 cannot be used on other CoolLED systems. Please use the Tables below to identify the fitting for your microscope.

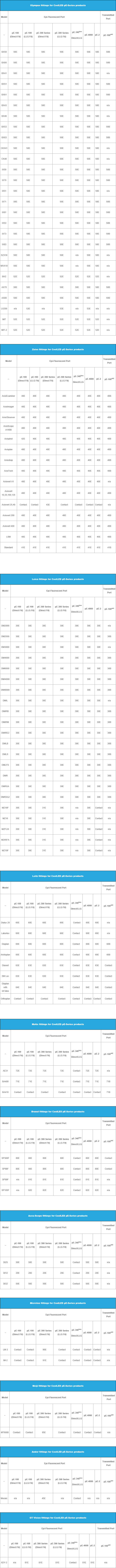

Adaptors for fluorescence and transmitted ports are listed below.

For “Contact” please contact CoolLED so that we can verify the exact fitting as some microscopes models have been supplied with different fittings over a period of time. This will ensure that that your CoolLED illumination system will fit correctly when you fit it to your microscope.

?

?

?*ANR = Adaptor Not Required

?

?
