F-matcher 2.6xUV

• Magnification ? 2.6 fold

• Front operating part ? 23.3 mm

• Back operating part ? 74 mm

• Spectral range ? 200…..2500 nm
  (and up to 3200 nm on a special order)

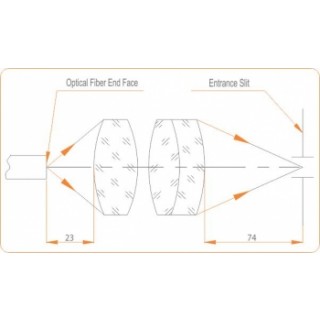

Constructively simple and easy in operation this condenser collects radiation from the object (maximal angle of coverage is 28.8 degrees) or optical waveguide (maximal aperture Na=0.22) and transfers it to the entrance slit of the spectral device without losses and stray light. Two achromatic in a wide spectral range objectives allow obtaining a high-quality image of the object or optical waveguide end in the plane of knife blades of the entrance slit of the spectral device. Replaceable diaphragm prevents propagation of the stray light. It is constructively possible to mount a filter wheel with light filters.

Condenser is specially designed for operation with monochromator-spectrographs of MSDD1000 Series and allows one to fill the entrance slit of the spectral device completely and without losses.

?
