F-matcher 1.4xUV > SOL

F-matcher 1.4xUV

• Magnification ? 1.4 fold

• Front operating part ? 34 mm

• Back operating part ? 49 mm

• Spectral range ? 200…..2500 nm
  (and up to 3200 nm on a special order)

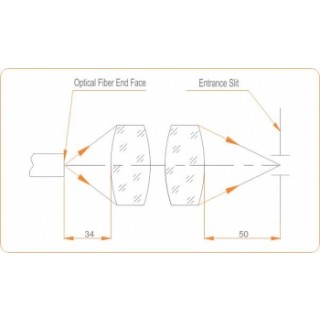

Condenser F-matcher 1.4xUV collects radiation from the object (maximal angle of coverage is 20.4 degrees) or optical waveguide (maximal aperture Na=0.22) and transfers it to the entrance slit of the spectral device without losses and stray light. Two achromatic in a wide spectral range objectives allow obtaining a high-quality image of the object or optical waveguide end in the plane of knife blades of the entrance slit of the spectral device. Condenser operates in the wide spectral range from 200 nm up to 2500 nm, and at its operation in the range from 200 nm up to 1100 nm an improved quality of the image is provided in comparison to other condensers of F-matcher line. Replaceable diaphragm prevents propagation of the stray light. It is constructively possible to mount a filter wheel with light filters.

Condenser is a universal unit for apertures matching which is convenient for operation with monochromator-spectrographs of MS200, MS350, MS520, MS750 MSDD1000 Series. Condenser F-matcher 1.4xUV allows one to fill the entrance slit of the spectral device completely and without losses. The given condenser can be also mounted to the exit slit of the spectral device, the radiation from the exit slit is collected to the waveguide or directly to the photoreceiver with matching the exit aperture of the spectral device and the photoreceiver aperture.

?
