2-channel Laser System

With the intensive technological progress, the atmospheric monitoring has become one of the most important

issues for the absolute majority of states in their environment protection activity.

The acquisition of on-line information about the state of the atmospheric layer is an integral part of both

global and regional atmospheric monitoring.
LIDAR systems using laser radiation sources are often integrated into the systems of atmospheric monitoring.

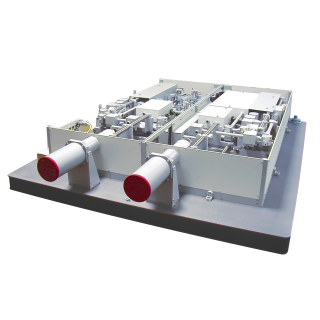

The given two-laser system (one Ti:Sapphire lasers and one Nd:YAG laser) is designed for application

in a mobile distant atmosphere monitoring complex as a radiation source. To determine chlorine, nitrogen

dioxide or ozone in the atmosphere the differential method for detection of the second and third harmonics

of Ti:Sapphire laser on the set wavelengths in the first channel of laser system is used. Radiation of the

second harmonic of Nd:YAG laser in the second channel is used for probing of aerosol formations,

and the third harmonic radiation is used as an auxiliary one at chlorine detection.

Features

• Opportunity of simultaneous generation on the several wavelengths
• Wide spectral range (from 235 up to 1064 nm)
• Narrow ? line radiation generation (up to 35 pm)
• Wide range of output energies (from 1 up to 650 mJ)
• Automated setting and control over the output parameters
• Online control over the energy and the wavelength of each radiation pulse in both channels
• Thermal and mechanical resistance of the construction; stability of the parameters
• Completely automated system for measuring of the parameters of each pulse
• High noise resistance
• Control and transfer of the information via fiber optics

?
