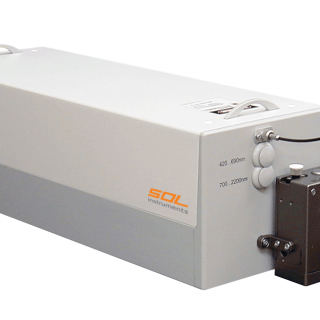

CHAMELEON OPO2200 Parametric Oscillator
CHAMELEON OPO2200 BBO TYPE I
CHAMELEON OPO2200 BBO TYPE II
- Fully automated operation and wavelength control
- Long-term stability of output parameters
- Control of laser parameters via PC
-
- Tuning range from 415 (420) nm to 2300nm
- Original optical schematic
- Adaptive to various pump lasers
- Optical parametric oscillation in BBO crystal allows to cover the broadest operational spectrum range (from 420 to 2300nm)
- Careful testing ad selection of BBO crystals ensures long-term reliable operation
- The originally?designed intracavity optics and mechanical units allow avoidance of cavity misalignment
- Interchangeable focusing optics of UV region allows adaptation of CHAMELEON OPO 2200 to a variety of pump lasers and laser systems
Output parameters? |
CHAMELEON OPO2200 BBO TYPE II |
CHAMELEON OPO2200 BBO TYPE I |
Wavelength tuning range: |
|
|
Signal wave: |
414 - 709 nm |
420 - 690 nm |
Idler wave: |
710 - 2300 nm |
720 - 2200 nm |
Max. convesion efficiency (E355=70-150 mJ) at pump pulse duration 15 ns: |
|
|
signal+idler: |
35 % |
40 %? |
signal: |
25 %? |
30 %? |
Linewidth (500 nm): |
0.15 nm |
0.5 nm |
Output radiation channel (after beam splitter): |
I ? idler wave |
I ? idler wave |
|
II - signal wave |
II - signal wave |
Pulse duration (FW 0.5): |
by 1-2 ns shorter than pumping pulses |
by 1-2 ns shorter than pumping pulses |
Polarization: |
|
|
- signal: |
linear, horizontal |
linear, horizontal |
- idler: |
linear, vertical |
linear, horizontal |
|
?Tuning curve (E=150 mJ, 355 nm)
CHAMELEON OPO2200 BBO TYPE I
?
Tuning curve (E=150 mJ, 355 nm)
CHAMELEON OPO2200 BBO TYPE II
