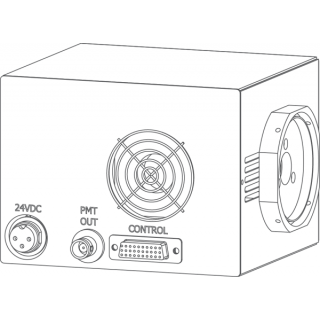

PTM-7844 Single-channel detector > SOL

 Characteristics?

 Value?

 Spectral sensitivity range:

 185 ? 900 nm

 Peak sensitivity wavelength:

 400 nm

 Effective area:

 9 x 14 mm

 Typ. Sensitivity (voltage 1000 V):

 9 х 10⁸ W/lm?

 Typ. Spectral sensitivity  (voltage 1000 V, at 400 nm)

 2.28 х 10¹¹ V/W?

 Dark voltage:

 ±1 mV

 Output signal rise time:

 30 μs

 Bandwidth:

 0 ? 50 kHz

 Voltage adjustment range:

 от +0.3 to +1.1 V

or external potentiometer 10 kΩ

 Setting time:

 200 ms

 Voltage adjustment function:

 Linear, Adjustment control voltage in the range +0.3 to +1.1 V correspond the high voltage in the range 300 to ?1100 V

 Minimal distance between photosensitive surface centre

 and optvical table surface:

 50 mm

 Dimestions: (W х L х H)

 116 х 130 х 96 mm

 Weight:

 Not more then 1.2 kg
