Digital cameras U2C series > SOL

 Model?

 U2C-16H10426

CCD area image sensor

 U2C-16H11850

CCD area image sensor

 U2C-16H7306

CCD area image sensor

 U2C-16H7316

CCD area image sensor

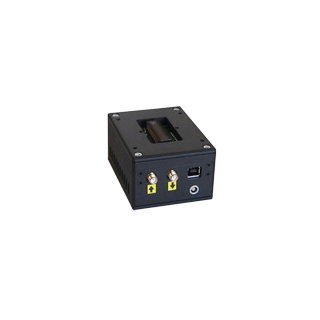

 Photo of the device

?

 ?

 ?

 Spectral sensitivity?

 Sensor type:?

 S10420-1106-01?

 S11850-1106?

 S7030-1006S

 S7031-1006S?

 Number of pixels: ??

 2048 х 64??

  1024 х 58?

 Pixel size (H) x (V): ?

 14 х 14 μm ?

 24 х 24 μm

 Image area, mm:?

 28.672 х 0.896 ?

 24.576 х 1.392?

 Spectral range, nm:?

 200 - 1100 ?

 200 - 1100

 Maximum spectral  sensitivity, nm:?

 600 ?

  650 ?

 Quantum efficiency at  wavelength 600 nm

 not less, %:

 75 ?

 90?

 Typical relative  irregularity of ensitivity,  no more than, %:?

 ± 3?

 ± 3?

 Minimal acquisition  time, msec:?

 8.272 ?

  8.352 ?

 Maximal acquisition  time, line binning mode,  sec:?

 5?

 150

 3

 180

 Frame reading time, full binning of all lines, sec:?

 9.112 ?

  9.376 ?

 Antiblooming:?

 + ?

 no?

 Camera ADC digit  capacity:?

 16 bit?

 16 bit?

 RMS readout noise,

 ADC counts, time of  acquisition - 8,352  msec, full binning:

 < 4 ?

 < 3

 < 2?

 < 1,5?

 Dynamic range:?

 > 16.000

 > 21.000?

 > 33.000?

 > 43.000?

 Readout speed, kHz:?

 250?

  125 ?

 Photodetector temperature, °С:?

 non-cooling?

 5

 non-cooling?

 -10

 Operating temperature  range, °С:?

 10 - 35?

 10 - 35?

 Interface:?

 USB 2.0?

 USB 2.0?

 Syncronization:?

 IN / OUT?

 IN / OUT?

 Overall sizes of the  cameras (L x D x H):?

 46 х 86 х 66?

 120 х 80 х 70

 46 х 86 х 66??

 120 х 80 х 70

 Weight (gr), no more  than:?

 320?

 770?

 320?

 790?

 Power consumption:?

 USB-port?

 external?

 USB-port?

 external?
