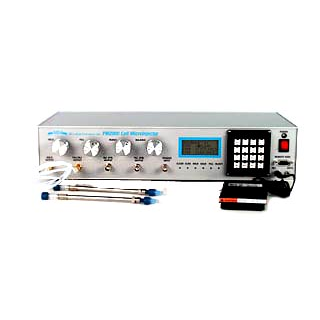

PM2000 Programmable Cell Microinjector

1.Precision and versatile pneumatic injection engine for cell surgery and

 cell physiological research

2.Accurate microinjection, suction, clearing , balancing and venting can be delivered from

 the cell injection port

3.Gentle sucking, cleaning, holding, releasing and pushing a cell can be delivered

 from another cell holding port

4.Highest repeatability with savable timers, counters, action sequences and pressure readings

5.All programming and actions are controlled by an advanced microprocessor

6.User-friendly keyboard, remote port, foot switch and full information LCD display

The advantage of cell microinjection has changed the way that the scientists carry out in biomedical research

and assisted fertilization (AF). The use of cell microinjection has become a major molecular and cellular technique

and been considered as surgery on a single cell. Utilizing an advanced microcontroller and precision pneumatic components,

the PM2000 is just designed as a very precise and smart pneumatic engine for microinjection.

The PM2000 is obviously superior in precision, convenience and function versatility to a syringe pump. This superior pneumatic microinjector can combine with precisely pulled microscopic glass pipettes and micromanipulators to form an ideal operating tool in the cell surgery.

A 60 - 100 psi pressure input gas is the only gas source required for the PM2000 to produce a wide range of pressure

and vacuum outputs. There are two output ports on the PM2000 front panel, one for a cell injection (or suction) pipette

and another for a cell holding pipette. The injection port can do clearing, injecting, sucking, venting and balancing

capillary action for the injection pipette. The cell holding port can do gentle suction for holding a cell. Besides cell

releasing function, a smart proportional and adjustable pressure can be produced to push a cell out off the tip gently

or clear the holding pipette completely. All action timers are savable and programmable from 10 millisecond to

continue or manual control time. The action counter is programmable and savable too. All pressures are adjustable.

Their readings are savable. The PM2000 performs real-time data acquisition for pressure and vacuum monitoring.

In the pressure mode, the suction vacuum generating pressure, injection pressure, balance pressure and hold vacuum

will be displayed simultaneously as well as previous saved pressure. It is convenience for user to adjust and

compare all pressure settings in one time. Monitor the input pressure is available too.

The PM2000 allows the user to program custom-designed action sequences. Within each sequence, a user can save

4 pressure readings, 4 preset timers and 4 counters for corresponding actions. There are 12 programmable action steps

in each sequence and total 63 programmable sequences. All 63 sequences will be saved even turn off the power.

The last using sequence will be recovered automatically when turn on the power again. There-fore, a user can program

all different pressures, timers, counters and action steps for different experiments (up to 63). The user can just turn on

the power to continue the last experiment , or simply select a sequence number, any one of 63 different experiments

can be precisely repeated on any time. A simple and straightforward 4x4 keyboard allows the user to preset timer,

counter and action sequences or perform actions. An LCD display window provides full information such as

pressure, vacuum, time, count, sequence steps and actions, etc. Besides key pad, there are two foot switch

connectors which can be used to control injection and trigger sequence steps. The remote port of a DB9 connector

gives users a very useful option to interface outer control units. An optional remote keypad can be plugged in

this remote port and be placed nearby the micromanipulators to form a very convenient microinjection work station.

Another function of the remote port is as a computer interface port for cell electrophysiology applications. Meanwhile,

there are BNC connectors for the timing (injection, suction and sequence step) signal in and out to

synchronize other electrophysiological instruments.
