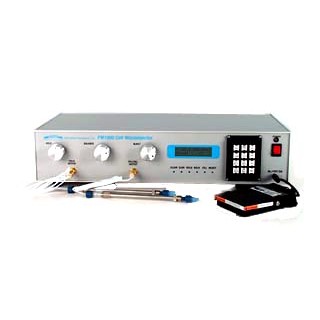

PM 1000 Cell Microinjector

• Very simple to use with adequate precision functions for cell surgery

The PM 1000 Cell Microinjector is just designed for cell microinjection and intracytoplasmic sperm injection (ICSI).

It is very simple to use but comes with adequate precision functions for cell surgery.

The PM 1000 is a very precise pneumatic microinjector. It can convert a single input pressure ( 30-100 psi ) to varied

inject pressures and suction vacuums. All functions and timing are under control of a sophisticated microprocessor.

There are two output ports on the front panel. The injection port can perform clearing, sucking, venting and

adjustable capillary action balancing and injecting. The direct input pressure is used for clearing the inject pipette.

The direct input pressure is also a source of suction vacuum generator which can provide negative pressure (suction)

for the inject port. Another output port can produce a gentle and adjustable suction vacuum to hold a cell on a

holding pipette tip. Also, a gentle and proportional smart pressure can be produce to push a cell out of the holding

pipette tip without blow it off. Holding pipette clearing is available too.

To achieve the simplicity and easy to use, only the injection time is manual controllable and programmable.

All other functions are manually controlled. There are neither sequence steps, counters programming, nor mode switching.

When turn on the injector power, the LCD will display only balance pressure, injection pressure and injection timer (or manual control). All actions are immediately ready. Although there is no programmable timer for clearing pipette, the clearing function is very smart : When the clear function key is pressed, the clear pressure will only pulse for a short time (10 millisecond) at the beginning. If the key is still pressed after three pulses, then the clear pressure will go on continually until the key is released.

During injection, the LCD will display and record injection count. If it is manual control, the LCD will display time for

acting injection as a stop watch. If injection timer control is needed, just one key pressing will switch between timer

control or manual control. If programming timer is needed, also pressing one key will open another key set for

number programming. The balance pressure, injection pressure, hold cell vacuum and pushing cell pressure are

adjustable. The suction vacuum from the injection pipette is not adjustable. It is controlled by manual timing only.

Besides the key pad, there is a foot switch input for the injection control. It is important and convenient that a foot can be

used when both hands are busy on a microscope and manipulators. The exceptional precision and easy to use are

essential of the PM1000. It is proved to be a very effective and convenient microinjector in the cell surgery
