Imaging Machine for HIGH CONTENT SCREENING 요약정보 및 구매

Automatically Machine For ZEBRAFISH, DROSOPHILA, CELL BASED, YEAST

제조사	ACQUIFER
원산지	Germany
모델	High Content Screening
판매가격	전화문의
포인트	0점
배송비결제	주문시 결제

위시리스트 추천하기

이전상품 HIVE SOLUTIONS

상품 정보

상품정보
사용후기 0
상품문의 0
배송정보
교환정보

상품 기본설명

Automatically Machine For ZEBRAFISH, DROSOPHILA, CELL BASED, YEAST

상품 상세설명

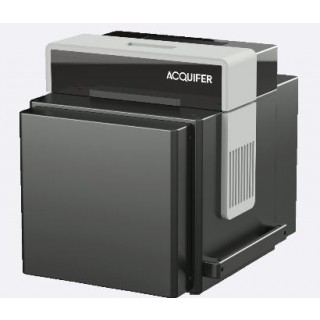

Imaging machine for High Content Screening

Smart Image Acquistion
Designed for experiment reproducibility
Unique optical and mechanical design for sensitive specimen
Data storage & processing integrated

We developed our Imaging Machine for easy, precise, robust and smart high content screening applications without the need for an expert to manage the experiment. We focused on integrated data management, long term data transparency, sensitive samples and a robust machine technology that allows Imaging Machines to learn and reproduce protocols from other devices. In other words: Imaging Machines are designed for everyone to use.

APPLICATIONS

ZEBRAFISH

Dorsal orientation tool
Lateral orientation tool
Image optimization ? Deconvolution
Smart Imaging interface (TCP based)
Visualization tools

DROSOPHILA

Large / thick 3D specimen
Image optimization / de-blurring
Smart Imaging interface (TCP based)

(Time-lapse) Cell based

Optimized Temperature control - unique laminar flow design for MT plates
Light power sensor at sample level
precise re-positioning (linear motor axis + 1nm resolution encoder)
Laser Autofocus
Smart Imaging Interface (TCP based)

YEAST

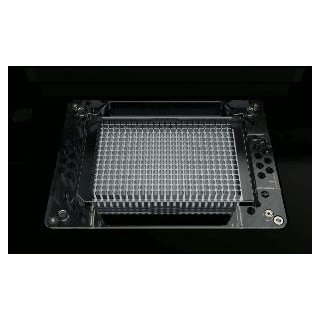

Static MT plate holder (for very force sensitive yeast lines)
Laser Autofocus
Yeast optimized image based auto-focus
Image processing workflows
Robotic sample preparation expertise
Smart Imaging interface (TCP based)

Large projects

Designed for single and multi Imaging Machine projects
HIVE Data module integration allows seamless project scaling
Light power, temperature, motor sensors designed for optimized data reproducibility
Small benchtop design optimal for multi machine setups
Smart Imaging interface (TCP based)

Robotic integration

TCP/IP interface allows remote control from many software packages

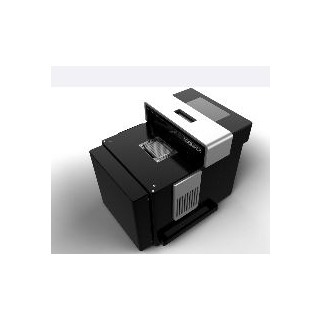

Robotic lid allows easy gripper access
Sensors for position, light and temperature render hardware calibration routines obsolete

Technical details

User interface	“App based” or “Standard” or “Advanced” or “Smart imaging” or “Remote Master”
Specimen specific apps	Zebrafish, yeast, drosophila, cell. organoid, spheroid

Mechanical design	static sample holder, moving optics block
	Linear Motors with absolute position encoder, 1nm resolution
XY axis range	120 mm x 80 mm, 1nm resolution, linear motor, absolute encoded
Z axis range	25 mm, 1nm resolution, linear motor , absolute encoded Z axis design
	optimized for speed and precision (for data deconvolution)
Objectives	2x, 4x, 10x, 20x, 40x (Nikon)
LED light source	Omicron LED-HUB , up to 6 modules parallel, temperature controlled
LED light wavelengths	385, 405, 455, 470, 505, 528, 595, 625nm
LED lifetime	> 15.000hours on-time
LED power sensor	Power Sensor at MT plate level

Fluo Filter blocks	custom type, up to 5
Fluo Filter sets mono	any 25mm “Semrock” combination - see Semrock-Fluo-table
Fluo Filter sets duo-quad	in combination with LED light source module for ultra fast switching
Camera	Hamamatsu sCMOS 2k x 2k

Temperature + CO2
Incubation type	robotic lid + integrated laminar flow, pressure free
Incubation range	20°C - 40°C * if T > ambient temp +3°C
CO2	via external controller

Focussing	Laser Autofocus @780nm
	Image based Autofocus (standard, yeast)
Remote control	optional via TCP based commands from any software

Ambient conditions	18°-25°C / 65° - 77 ° F (Indoor use)
	Relative humidity 30%-80% (without condensation)
Power	120v-240V
Weight	62kg
H x W x D	553mm x 528mm x 555mm

-----------------------------------------------------------------------------------------------------------------------
