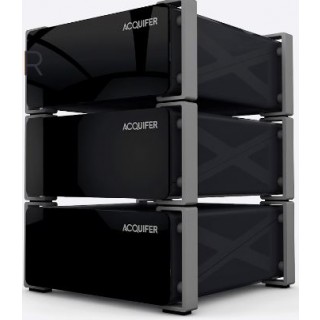

모델	HIVE
판매가격	전화문의
포인트	0점
배송비결제	주문시 결제

상품 정보

상품정보
사용후기 0
상품문의 0
배송정보
교환정보

상품 기본설명

DATA SOLUTION

상품 상세설명

HIVE SOULUTIONS FOR BIG DATA

4 Available Modules:

CORE for Processing
NET for Communication
DATA for Storage
GPU for AI/DL

Designed for the pragmatic, biology-focused scientist, the HIVE platform boosts productivity in microscopy facilities and screening labs. HIVE is a High Speed Centralized Data Repository that removes the need to constantly move or duplicate data sets in processing and analysis workflows. Its modular design integrates high speed processing, visualization, remote access, project management, flexibility, data security, scalability and ease of use in one unit.

It saves on time space, costs and administrator workload.

HIVE MODULE CONFIGURATION

The HIVE is a modular platform optimized for image processing and data handling. For each facility we combine the corresponding HIVE modules for optimal data processing efficiency. If you require more storage, processing power, dedicated network bandwidth or a custom solution, we can simply add more modules at any time.

High speed MICROSCOPE Example

Lightsheet Microscope
Large format sCMOS
Laser scanning
Confocal, Spinning disk, Screening microscope
3 HIVE modules recommended

Small core facility example

1 to 2 rooms
up to 5 microscopes
up to 3 Image Analysis workstations
3 HIVE modules recommended (depending on microscopes)

Medium core facility EXAMPLE

3 to 4 rooms
5 to 10 microscopes
up to 5 Image Analysis Workstations
5-7 HIVE modules recommended (depending on microscopes)

Large core facility EXAMPLE

4 to n rooms
15 microscopes
5 Image Analysis Workstations
6- n HIVE modules recommended (depending on microscopes)

HIVE with Backup

Backup of a HIVE can be done via dedicated Backup SW suites to

a distant installed HIVE or
to the local Central Data Repository.

Image Processing & Analysis

The HIVE´s operating System is Windows2012 Server R2.

Highly stable to work with huge amount of data and flexible basis for almost all Win7/8 software applications. The implemented processor, a 3,6Ghz Hexcore CPU, is the optimal basis for for imaging software relying on high count rates rather than vast number of cores.

For example best performance can be achieved with

Arivis Vision4D
Bitplane Imaris
FIJI
ImageJ
Leica LAS X
SVI Huygens
Microvolution
Zeiss ZEN

For packages requiring multicore processing or in need of specific high-end-GPU we recommend a HIVE GPU Core with:

up to 1 TByte DDR4 RAM
10 + 10 Core CPU/ 20 + 20 Threads
up to 2 x RTX 6000 with 24 GB GDDR6 RAM
up to 2 x 10 Gbit/s Copper Ethernet

Technical Details

The Hive Modules

A HIVE is a modular system based on three building blocks. Each one is an optimized unit for one of the three key data handling tasks in Imaging & Microscopy Applications: Computation - Networking - Storage.

HIVE CORE for Data Processing

High-Performance CPU & GPU for best image processing & analysis
VPN based remote Destop Access
2×10 Gbit/s copper or 2×10 Gbit/s optical fibre (optional)
Up to 1 TB DDR4 RAM
10TB Data safe storage with RAID5
2,2GHz 10-core CPU
128 GB DDR4 RAM*7
Nvidia Quadro RTX 4000
Windows Sever 2019
10 TB SSD RAID5
2×10 Gb Network

HIVE Net FOR Networking and Security

Integrated Software Defined Network (SDN) router to create a secure HIVE network for hosting the connected devices
10Gbit/s 16-Port Network Switch with a 320GB/s backbone to ensure a reliable exchange of large data sets
UPS battery buffered power stability system to stabilize the power supply and to ensure a safe shutdown in case of power outage to prevent loss of data
Security and firewall provided by router
320 Gb/s backbone
Gb router
Battery Backup for data safety
VPN Access

HIVE Data Data Repository

RAID6 secure data storage with fast access to large data
Resilient file system optimized for large data storage, reliable access to your data and maximum system stability
User friendly operation through standard Windows functionality with no need for specialized IT knowledge
Open Design allows for easy up-scaling of storage volume
RAID6 array in 52, 78, 104 or 130TB
Connectivity via Host Bus Adapter @ 4x 12Gbit/sec
Plug-and-play expansion of storage
Data collection rates at 800 MB/s
Hotswap Disk Replacement

HIVE GPU RENDERING / AI UNIT

GPU extender box
No special driver needed
Up to 3 HIVE GPU for a single HIVE CORE
HIVE Core synchronised power on / off
1000 W power supply
PCIe x16 exteneder
Up to 7 single or 4 double sized GPUs
Up to 504 TFLOPS

HIVE connectivity

A HIVE creates a closed Firewall protected DHCP network for the connected microscopes and other data sources.
In a standard configuration, the HIVE provides 13 local 10GBit/s connections and can be connected to the local IT environment.
An optional 2 x 10 Gbit uplink connection can be installed for high speed data traffic. This may be required to connect to local backup or permanent storage servers

HIVE comparison

HIVE Modules can be combined in many combinations for even very daunting IT tasks.

--------------------------------------------------------------------

HIVE SOULUTIONS FOR BIG DATA

3 Modules:

CORE for Processing
NET for Communication
DATA for Storage

실용적이고 biology 중심의 과학자를 위해 설계된 HIVE 플랫폼은 현미경 검사 시설 및 검사실에서의 생산성을 향상시킵니다.

HIVE는 처리 및 해석 워크플로우에서 지속적으로 데이터 세트를 이동하거나 복사 할 필요가 없는 고속 중앙 집중식 데이터

저장장치 입니다. 모듈식 디자인은 고속 처리, 시각화, 원격 접속, 프로젝트 관리, 유연성, 데이터 보안, 확장 성 및 편의성을 하나의 장치로 통합합니다. 시간, 비용 및 관리자의 작업량을 절약 할 수 있습니다.

HIVE MODULE CONFIGURATION

HIVE는 이미지 처리 및 데이터 처리에 최적화 된 모듈실 플랫폼입니다. 각 시설마다 최적의 데이터 처리 효율성을 위해 해당

HIVE 모듈을 결합합니다. 만약 저장 장치, 처리 능력, 전용 네트워크 대역폭 또는 사용자 지정 솔루션이 더 필요하면 더 많은 모듈을 추가 할 수 있습니다 .
