Imaging Life In The Fast Lane

Latest sCMOS Camera technology and optimized combinations of objective lenses enable you to obtain the best from your sample: data you always wanted but could never get.

• Large field of view
• Close-to-confocal resolution
• Very high imaging speed
• Highest sensitivity and minimal noise

The Microscope Seeing Life From A Different Angle ?

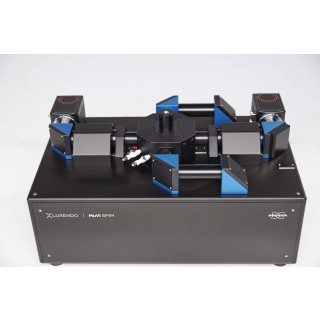

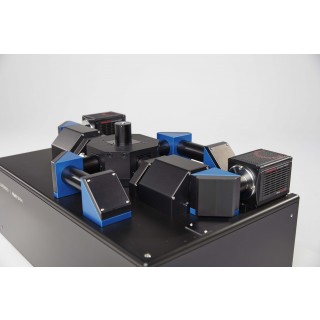

The MuVi-SPIM provides four simultaneous orthogonal views on large living specimens without the need for sample rotation. This avoids shadowing effects and facilitates long-term imaging at dramatically increased acquisition speed. The modular software concept allows the flexible design of complex experimental layouts. 3D image data can be directly streamed to a storage and data processing server for fast data registration and fusion.

• 3D imaging of large specimen with light-sheet illumination
• Gentle sample handling and low phototoxicity
• Highly sensitive and fast imaging

MuVi-SPIM The Technology

The MuVi-SPIM utilizes a sheet of laser light to illuminate only a thin slice of a fluorescently labeled sample. A wide-field fluorescence microscope, placed perpendicular to the light-sheet, serves to collect the fluorescence signal and images the observed region by means of a camera.

This features the following advantages:

• Intrinsic 3D optical sectioning
• Excellent signal-to-noise ratio
• High time resolution
• Drastically reduced overall photobleaching and phototoxicity

 ?

The Technology 360° Illumination and detection

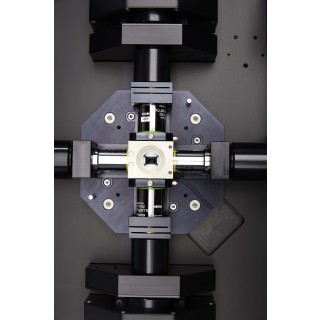

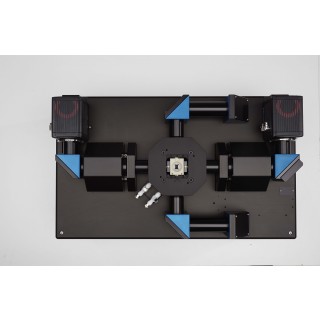

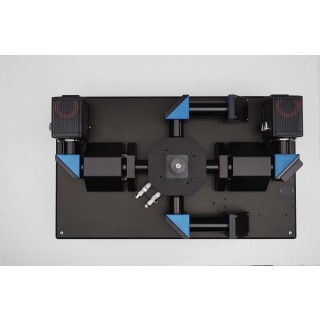

The four objective lenses allow four combinations of illumination and detection. This provides four orthogonal views of the specimen without the need for sample rotation, enabling:

• Multiple view imaging of large samples at unprecedented speed
• Long-term stability
• Time series over several days
• Robust image registration
• Efficient data fusion and visualization

Specifications & Configurations
