F-matcher 2xVIS

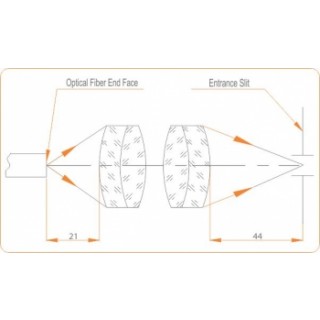

Constructively simple and easy in operation this condenser collects radiation from the object (maximal angle of coverage is 28.8 degrees) or optical waveguide (maximal aperture Na=0.22) and transfers it to the entrance slit of the spectral device without losses and stray light. Two achromatic in a wide spectral range objectives allow obtaining a high-quality image of the object or optical waveguide end in the plane of knife blades of the entrance slit of the spectral device. Replaceable diaphragm prevents propagation of the stray light. It is constructively possible to mount a filter wheel with light filters.
?
Title?
| n-fold magnification?
| Angle of coverage, degrees?
| Spectral range, nm ?
| F/number | Optimal for Series | Advantages | |
entrance?
| exit ?
| ||||||
1хVIS?
| 1 | 28.8° ?
| 400...2500?
| 1:1.9 | 1:1.9 | MS350 ?
| Can be supplied with: waveguide holder; 6- or 8-positional filter wheel; separate light filters; replaceable diaphragm; F-matcher can be mounted on the exit slit of the device for collection of radiation to the waveguide |
1хUV?
| 1 | 17.5° | 200...2500 200...3200 special order | 1:3.3 | 1:3.3 |
| |
1.4xUV?
| 1.4 | 20.4° | 200...2500 200...3200 special order | 1:2.45 | 1:2.45 | MS350 ?
| |
1.6xUV?
| 1.65 | 27.9° | 200...2500 200...3200 special order | 1:2 | 1:3.25 | MS350 ?
| |
2xVIS?
| 1.92 | 28.8° | 400...2500?
| 1:1.9 | 1:3.3 |
| |
2.5хUV?
| 2.5 | 27.9° | 200...2500 200...3200 special order | 1:2 | 1:4.4 | MS520 ?
| |
2.6хUV?
| 2.6 | 27.9° | 200...2500 200...3200 special order | 1:2?
| 1:4.4 | MSDD1000?
| |
3.6хUV?
| 3.6 | 27.9° | 200...2500 200...3200 special order | 1:2?
| 1:7 | MS750 | |
| 품명 | F-matcher 2xVIS |
|---|---|
| 모델명 | F-matcher 2xVIS |
| 법에 의한 인증·허가 등을 받았음을 확인할 수 있는 경우 그에 대한 사항 | 상품페이지 참고 |
| 제조국 또는 원산지 | Belarus |
| 제조자 | SOL instruments Ltd. |
| A/S 책임자와 전화번호 또는 소비자상담 관련 전화번호 | 02-355-5963 |
