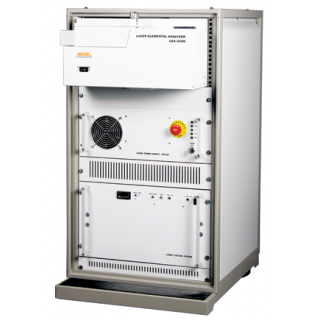

LEA-S500 ? is a modern powerful atomic - emission spectral instrument with multichannel spectrum registration, combining in itself innovation technologies in the area of laser, spectral, measuring, digital equipment and software and permitting elemental (chemical) analysis of a sample in minutes. The detectable elements are from H to U, measuring range is to 100%. Necessary weight of the analyzed material is from 50 nanograms. The time period of multi-element analysis including sample preparation is 1 ? 15 minutes. 400 analyses on determination of material homogeneity take about 7 minutes. Intuitive software of LEA-S500 guarantees operation of the instrument from the first opeartion. Only several hours and minimum special knowledge is needed to learn basic functions of the device. Two-pulse nanosecond laser source of spectra excitation, due to high energy, power and temporal stability, provides a maximal reproducibility of the analysis results and low detection limits of chemical elements and compounds. Simultaneously it provides arc and spark modes of spectra excitation. High-quality light throughput aberration-free high-resolution spectrograph provides accurate and reliable measurements. Unique detection system of short pulsed light signals provides extremely low limits of elements detection and a linearity of concentration dependences in a wide range. |
Detection limitsAdvantagesSoftware
| |
one-pulse spectra excitation mode | Two-pulse nanosecond laser In the elemental analyzer LEA ? S500 plasma of a sample material, arising due to the treatment of material with powerful light pulses, is used as a light source to obtain an atomic - emission spectrum. It has been experimentally revealed, that when a sample is treated with two successive laser pulses (with time delay not exceeding the plasma lifetime) an essential growth of intensity and spectral lines stability in comparison with one-pulse excitation mode is provided. The given effect reduces substantially the lower limit of elements detection, increases measurements accuracy, extends analytical potential owing to excitation of lines with high ionization energy. | |
two-pulse spectra excitation mode
Our innovative solutions guarantee:
| Detection system Use of digital cameras with multi-element spectrum detection systems in spectral instruments is conditioned by a number of advantages before the traditional detection systems (photo-electronic multipliers, photo-plates and etc.). The main of them are: the opportunity of simultaneous detection of a wide spectrum range; high-speed performance, providing detection of spectra excited with frequency pulsed sources, what allows one to make a large number of measurements per a time unit (in our case it is 20 times per second); wide range of spectral sensitivity; low dark signals (noise); wide dynamic range. As a radiation receiver in digital cameras matrix charge-coupled devices (CCD) are used, which are referred to the type of photosensitive (photoelectric) charge-transfer devices (CTD). Quantum efficiency of modern semiconductor radiation receivers is 90% and higher. Spectrograph Spectrograph performs radiation spectral analysis. This analysis is realized in optics by means of an element deviating the beams with various wavelengths to different angles. |
| 품명 | LEA-S500 |
|---|---|
| 모델명 | LEA-S500 |
| 법에 의한 인증·허가 등을 받았음을 확인할 수 있는 경우 그에 대한 사항 | 상품페이지 참고 |
| 제조국 또는 원산지 | Belarus |
| 제조자 | SOL instruments Ltd. |
| A/S 책임자와 전화번호 또는 소비자상담 관련 전화번호 | 02-355-5963 |
