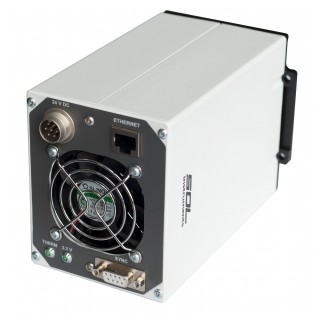

Digital Cameras HLS 190IR series


Purpose

Cameras with linear InGaAs image sensors are aimed for operation as a registration system in near-infrared region of a spectrum in the wavelengths range from 0,9 up to 2,55 ?m (depending on model) as a part of optical spectral instruments controlled by a personal computer of IBM PC class. In the cameras various InGaAs linear image sensors can be applied (see the table with technical characteristics).



hls 103h cut



?

Distinctive features

  • Embedded Personal Computer Pentium MMX.
  • Wide dynamic range.
  • Low dark signal.
  • Low readout noise.
  • Thermoelectric cooling of a sensor.
  • Advanced opportunities for programming of operating modes of the cameras.
  • Various input/output synchronization modes.
  • Direct shutter control.
  • High-speed interface - 10/100 Ethernet connection.
  • On-board random access memory (RAM) up to 128 MB.
  • Opportunity of the exposure time setting, pre-exposure and post-exposure delay time setting in wide limits.
HLS 190IR graph

Application area

As a registration system in spectrometers of a near-infrared region during the scientific and laboratory investigations, radiation thermometry, non-destructive testing, and also in other scientific and technical areas using spectrometric methods.



?

 Characteristic?



 Value?



 Readout speed:

 50 kHz, 125 kHz, 250 kHz, 416 kHz

 Sensor:

 linear InGaAs image sensor, types and models of

 the sensors are given in the table

 Nominal value of the distance from a forward plane

 of the camera up to photosensitive field of the sensor:

 10 mm

 Sensor cooling:

 built-in thermoelectric Peltier element with compulsory

 air forced and/or water cooling

 Stability of keeping of the set temperature:

 not worse than ± 1,0 °C

 Analog-digital converter (ADC) of the cameras:

 16 bit

 External PC connection interface:

 ?Ethernet 100 Base-T? under the protocol TCP/IP

 Power supply of cameras is realized from the external

 power adapter being a part of the delivery set:

 voltage direct current (VDC) 24 ± 5 V

 Power consumption:

 24 V A for one-step one;

 40 V A for two-step element of thermoelectric cooling  (Peltier)

 Overall sizes of the cameras (L x D x H):

 not more than 100 x 164 x 105 mm

 Weight:

 not more than 2.0 kg







 Model:?



 G9202-512S?



 G9208-256W?



 G9201-256S?



 G9203-256S?



 G9204-512S?



 Manufacturer:

 HAMAMATSU, Japan

 Type:

  InGaAs

 Number of pixels:

 512

 256

 256

 256

 512

 Pixel size (H) x (V):

 25 x 250 μm

 50 x 250 μm

 50 x 250 μm

 50 x 500 μm

 25 x 500 μm

 Active area size (H) x (V):

 12.80 x 0.25 mm

 12.80 x 0.25 mm

 12.80 x 0.25 mm

 12.80 x 0.50 mm

 12.80 x 0.50 mm

 Number of defect pixels:

 0 %

 not more than

  5 %

 not more than

  5 %

 0 %

 0 %

 Spectral sensitivity range:

 from 0.90 up

 to 1.67 μm

 from 0.90 up

 to 2.55 μm

 from 0.90 up

 to 1.67 μm

 from 0.90 up

 to 1.67 μm

 from 0.90 up

 to 1.67 μm

 Peak sensitivity wavelength:

 1.55 μm?



 2.3 μm?



 1.55 μm??



 1.55 μm?



 1.55 μm?



 Readout noise RSM:

 180 mkV

 300 mkV

 180 mkV

 180 mkV

 180 mkV

 Dark current:

 1

 (at Т = +25°С)

 pА

 500

 (at Т = -20°С)

 pА

 2

 (at Т = +25°С)

 pА

 4

 (at Т = +25°С)

 pА

  1

 (at Т = +25°С)

 pА

 Max. readout speed:

 416 kHz

 416 kHz

 416 kHz

 416 kHz

 416 kHz

 Min. temperature of sensor:











 water cooling:

 -20 °С

 -35 °С

 -20 °С

 -20 °С

 -20 °С

 air cooling:

 -10 °С

 -20 °С

 -10 °С

 -10 °С

 -10 °С

 Limiting time of accumulation of  dark signal of the cameras before  saturation of the sensor at the  minimal temperature:

 not less than

 12 min

 not less than

 0.5 s

 not less than

 6 min

 not less than

 3 min

 not less than

 35 s

 Power consumption:

 not more than

 24 В?А

 not more than

 40 В?А

 not more than

 24 В?А

 not more than

 24 В?А

 not more than

 24 В?А
