The original optical configuration with a narrow laser line is used in the laser to allow generation of TEMoo radiation (more than 100mJ at fundamental).
The laser can be completed with a compact spectrometer of SL40-2 series or S150-2 series to allow wavelength control of a tunable laser in a broad spectrum range from 235 nm to 950 nm.
LF 114 Pulsed Nd:YAG , LF 117 Pulsed Nd:YAG lasers or any other pump laser with similar parameters can be used to pump CF131M Ti:Sapphire laser.
?
Tunability across the spectral range of a pulsed Ti:Sapphire laser (pump energy 300 mJ at 532 nm)
|  |
 |
|
 |
Active medium: |
|
||
*Tunable range: |
|
||
at fundamental: |
690 - 950 nm |
||
at the second harmonic: |
350 - 470 nm |
||
at the third harmonic: |
235 - 315 nm?
|
||
**Pump conversion efficiency at the maximum of tuning curve: |
|
||
at fundamental: |
≤ 25.0 % |
||
at the second harmonic: |
≤ 8.0 % |
||
at the third harmonic (% of energy at fundamental): |
≤ 2.5 % |
||
***Line width (for all harmonics): |
0.03 - 0.04 (0.002) nm |
||
Beam divergence: |
< 1.5 mrad
|

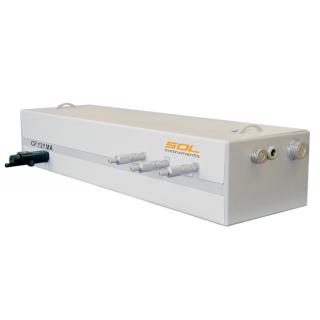

| 품명 | CF131M Tunable laser |
|---|---|
| 모델명 | CF131M Tunable laser |
| 법에 의한 인증·허가 등을 받았음을 확인할 수 있는 경우 그에 대한 사항 | 상품페이지 참고 |
| 제조국 또는 원산지 | Belarus |
| 제조자 | SOL instruments Ltd. |
| A/S 책임자와 전화번호 또는 소비자상담 관련 전화번호 | 02-355-5963 |
