The original optical configuration with a narrow laser line is used in laser to allow generation of TEMoo radiation (more than 100mJ at fundamental).
Frequency converters (SHG, THG, FHG) extend the tunability range of a laser to UV region to 189nm.
The laser can be completed with a compact spectrometer of SL40-2 series or S150-2 series to allow wavelength control of a tunable laser in a broad spectrum range from 189nm to 950nm. LF 114 Pulsed Nd:YAG, LF 117 Pulsed Nd:YAG lasers or any other pump laser with similar parameters can be used to pump CF131 Ti:Sapphire laser.
Tunability across the spectral range of a pulsed Ti:Sapphire laser (pump energy 300 mJ at 532 nm)
|  |
 |
|
 |  |
Active medium: |
Ti:Sapphire |
*Tunable range: |
|
at fundamental: |
690 - 950 nm |
at the second harmonic: |
350 - 470 nm |
at the third harmonic: |
235 - 315 nm |
at the fourth harmonic: |
189 - 207 nm; 205 - 235 nm |
**Pump conversion efficiency at the maximum of tuning curve: |
|
at fundamental: |
≤ 25.0 % |
at the second harmonic: |
≤ 8.0 % |
at the third harmonic: |
≤ 2.5 % |
at the fourth harmonic: |
|
for the range 205 - 235 nm: |
≤ 1.8 % |
for the range 189 - 210 nm: |
≤ 0.6 % |
***Line width (for all harmonics): |
0.03 - 0.04 nm |
Beam divergence: |
< 1.5 mrad |

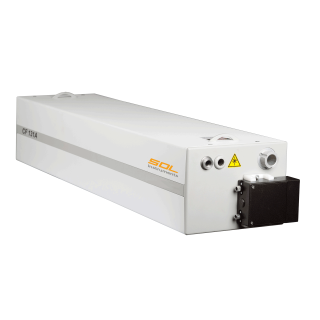

| 품명 | CF131 Tunable laser |
|---|---|
| 모델명 | CF131 Tunable laser |
| 법에 의한 인증·허가 등을 받았음을 확인할 수 있는 경우 그에 대한 사항 | 상품페이지 참고 |
| 제조국 또는 원산지 | Belarus |
| 제조자 | SOL instruments Ltd. |
| A/S 책임자와 전화번호 또는 소비자상담 관련 전화번호 | 02-355-5963 |
