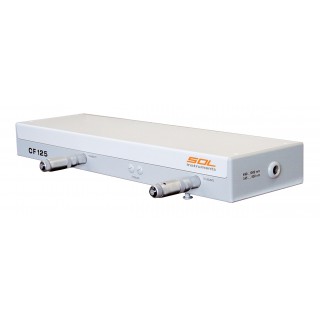

CF125 Tunable laser > SOL

 Active medium:

 Ti:Sapphire

 Tunable range:

 at fundamental:

 700- 1000 nm

 at the second harmonic:

 350 - 500 nm

 at the third harmonic:

 235 - 325 nm

 at the fourth harmonic:

 208 - 242 nm

 Pump conversion efficiency at the maximum of tuning  curve:

 at fundamental:

 ≤ 25 %

 at the second harmonic:

 ≤ 8 %

 *at the third harmonic(relative to SHG output)

 ≤ 25 %

 *at the fourth harmonic(relative to SHG output)?

 ≤ 20 %?

 Line width (for all harmonics):?

 0.2 - 0.3 nm?

 Beam divergence:?

 < 1.5 mrad?

 Overrall size (LxWxH)

 538 х 150 х? 72 m??m

 Weight:

 6.5kg
