X-Cite Turbo 요약정보 및 구매

Fluorescence Laser-LED Illumination

상품 정보

Fluorescence Laser-LED Illumination

Powerful, multi-wavelength LED illumination for all your Fluorophores

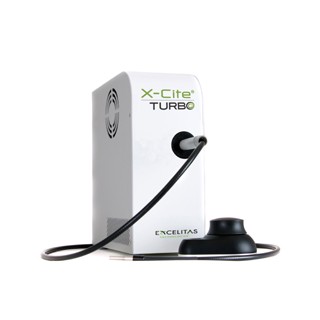

New X-Cite TURBO is a powerful, six-wavelength Laser-LED Hybrid source for fluorescence excitation applications.

Providing maximum excitation for up to six fluorophores using our patent-pending Laser-LED Hybrid Drive^TM,

X-Cite TURBO offers a highly versatile solution for routine to advanced imaging applications. With manual, PC,

TTL and analog control, as well as compatibility with existing imaging software drivers, X-Cite TURBO includes

convenient control options for any instrument configuration. With six high-power wavelengths, researchers

have the flexibility to add additional fluorophores for live or fixed cell imaging to their imaging arsenal.

Features	Benefits
Laser-LED Hybrid Drive^™	Maximum output power. Operate six wavelengths individually, simultaneously or in any combination with no “channel sharing” or delays to change internal filters.
Excitation Filter Holders	Precision. Fine-tune excitation spectra to your requirements.
Fast-switching	Excitation uniformity. Direct light into instrument with a light guide style that best suits the application. Main unit can be remotely located if space is constrained.
Multiple Control Options	Simplicity. Operate with USB, TTL, analog or a combination.
Optimized Thermal Management	Reliability. Maximize LED output, lifetime, and stability.
X-Cite Coupling Optics ? optional	Performance. Maximize optical output and uniformity with the highest performing coupling optics available.

Fluorophores

Technical Specifications
Package Includes	X-Cite TURBO unit, speedDIAL remote, 3mm x 1500mm liquid light guide, accessory kit (hex key, USB cable, filter holder screws, trigger cable, power bar & cord), microscope adaptor
Wavelengths (usable range)	385nm (375-400) 430nm (410-450) 475nm (460-495) 525nm (500-520) 575nm (525-610) 630nm (615-660)
Excitation Filters	Accommodates standard 25mm diameter filters, with 3-5mm frames; filters not included
External Power Supply	Universal input 100-240VAC, 50/60Hz
Power Consumption	156W (with all LEDs on)
LED ON/OFF Response Times	<100?s TTL / 1ms USB
Acoustic Noise	49 dB
Optical Stability	Wavelength dependent, ≤5% at 22°C ambient
Control Options	ON/OFF I/O- TTL compatible, typical 800?A Intensity I/O ? Analog, 1-5V, maximum 500?A RS-232 commands (SDK available), USB
I/O Connections	DB25 to 12x BNC (6 TTL, 6 Analog) USB (B-type)
Dimensions	110mm x 260mm x 230mm (W x H x D)
Weight	4.5 kg
Certifications	RoHS, CE
Warranty	LEDs ? 15,000 hours or 3 years All other components - 1 year, parts and labor

Control Options
Manual Control ? speedDIAL	ON/OFF Speed sensitive intensity control Left and right-handed control option
USB	ON/OFF Intensity control Compatible with X-Cite XLED1 third party software drivers
TTL	ON/OFF
Analog	1-5V

품명	X-Cite Turbo
모델명	Fluorescence Illumination
법에 의한 인증·허가 등을 받았음을 확인할 수 있는 경우 그에 대한 사항	상품페이지 참고
제조국 또는 원산지	미국
제조자	Excelitas (X-Cite)
A/S 책임자와 전화번호 또는 소비자상담 관련 전화번호	02-355-5963
