Compact and Simple to Use Broadband Illumination

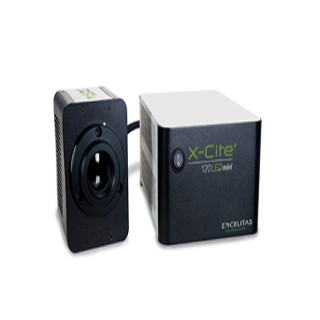

The X-Cite 120LEDmini is a compact and simple to use white-light LED light source for fluorescence imaging applications. Through direct coupling, X-Cite 120LEDmini delivers superior LED illumination and exceptional field uniformity at the specimen level with the broadest spectrum of fluorescence excitation for routinely used fluorophores. Additionally, with manual, PC and TTL control, X-Cite 120LEDmini provides convenient control options for any instrument configuration, from basic to fully automated operation. With LEDs guaranteed for 20,000 hours, X-Cite 120LEDmini is virtually maintenance-free with no lamp or light guide components to replace, and requires minimum space attributed to its compact size.
| Features | Benefits |
| LED Technology | Efficiency, stability, instant ON/OFF and long lifetime |
| White Light Excitation | Excitation of commonly used fluorophores such as DAPI, CFP, GFP/FITC, YFP, mCherry/Texas Red, and Cy5 |
| Direct Coupled | High Power excitation |
| Multiple Control Options | Simple operation through USB, TTL or speedDIAL |
| Small Footprint | Minimal space requirement ; less bench top real estate used |
| Optimized Thermal Management | Maximum LED output, lifetime, stability and reliability |
| X-Cite Coupling Optics | Efficient optical output and uniformity with highest performing coupling optics |
| Filter Recommendations | ||
| Fluorophore | Semrock Filter | Chroma Filter |
| DAPI | DAPI 5060-C | 49028 |
| CFP | CFP-2432C | 49001 |
| CFP/YFP FRET | FRET CFP/YFP-C | 89002 |
| FITC | FITC-5050-A | 49002 |
| GFP | GFP-4050B | 49002 |
| YFP | YFP-2427B | 49003 |
| TRITC | TRITC-B | 49004 |
| mCherry | mCherry-B | 49008 |
| Cy5 | Cy5-4040C | 49006 |
Fluorophores
| Fluorophore | Wavelength (nm) |
| DAPI | 385 |
| CFP | 435 |
| GFP/FITC | 470 |
| YFP | 510 |
| TRITC/Cy3/RFP/mCherry | 560 |
| MitoTracker® Red CMXROS | 580 |
| Cy5 | 640 |
| Technical Specifications | |
| Includes | X-Cite 120LED Head, miniCube, speedDIAL, microscope flange, accessory kit |
| Wavelength Range | 370-700nm |
| External Power Supply | Universal input 100-240VAC, 50/60Hz |
| Power Consumption | 150W |
| LED ON/OFF Response Times | 85μs TTL / 1ms USB |
| Control Options | ON/OFF - TTL compatible, speedDIAL, RS-232 commands (SDK available), USB |
| I/O Connections | BNC input , USB (B-type) |
| Dimensions - HEAD | 100mm x 135mm x 110mm (W x H x D) |
| Dimensions - CONTROLLER | 180mm x 110mm x 230mm (W x H x D) |
| Dimensions - speedDIAL | 80mm x 59mm x 112mm (W x H x D) |
| Weight | 3.4 kg (7.5 lb) |
| Certifications | RoHS, CE |
| Warranty | LEDs ? 20,000 hours, All other X-Cite 120LEDmini components - 1 year, parts and labor |
| Control Options | |
| Manual Control ? speedDIAL | ON/OFF |
| Speed sensitive intensity control | |
| 1 favorite intensity setting | |
| Left and right-handed control option | |
| USB | ON/OFF |
| Intensity control | |
| Compatible with X-Cite 120PC, X-Cite exacte, X-Cite 120LED and X-Cite 110LED drivers | |
| TTL | ON/OFF |
| 품명 | X-Cite 120LEDmini |
|---|---|
| 모델명 | Fluorescence Illumination |
| 법에 의한 인증·허가 등을 받았음을 확인할 수 있는 경우 그에 대한 사항 | 상품페이지 참고 |
| 제조국 또는 원산지 | 미국 |
| 제조자 | 엑스사이트 |
| A/S 책임자와 전화번호 또는 소비자상담 관련 전화번호 | 02-355-5963 |
