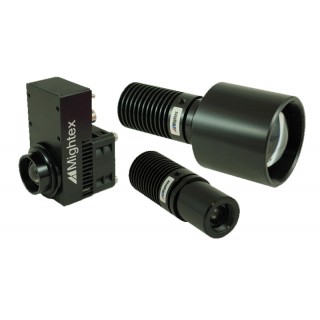

BioLED Optical Head: Collimated LED's

상품 상세설명

Mightex BLS-series BioLED light sources are modularized fully-customizable turn-key solutions for optogenetics, fluorescence excitation, and other biophotonics applications. Precisely-timed and high-intensity light pulses are required in optogenetics experiments to activate channelrhodopsins (ChR2, ChR1 etc.) and halorhodopsins (NpHR) in order to excite and inhibit neurons. To meet these requirements, Mightex has developed a proprietary “IntelliPulsing” technology to allow BLS-series sources to output significantly higher power in pulse mode than what the LEDs are rated for in CW mode.

Mightex BLS-series collimated LED sources employ the latest high-power LED technologies and a proprietary coupling optics to achieve the best beam uniformity. In conjunction with BioLED light source control modules, these LED sources can be used for a wide range of applications including optogenetics and other bio-photonics applications.

Multi-chip LED emitters (i.e. Type-B) have been added to the product portfolio. Some of these 7W to 15W LEDs have total optical power exceeding 500mW, doubling the power of a single-chip LED. Such Type-B models with higher powers (7W and higher) feature a cooling fan, and have a different form factor compared to Type-A models. Please examine the installation drawings carefully. Power supply for the cooling fan is included in the price of the Type-B collimated LED sources.



OPTICAL PERFORMANCE SPECIFICATIONS


Type-A BLS-LCS (passively cooled with no cooling fan)
Type-B BLS-LCS (with a cooling fan)

Part NumberType1Wavelength Code (xxxx)Wavelength
(nm)
Half Diverging Angle(deg.)Output Power (mW)
φ11mm2φ22mm2φ38mm2φ48mm2CWIntelliPulsing3
BLS-LCS-0365-02-xxA03653653.41.71.00.7580160
BLS-LCS-0365-11-xxB03653656.83.42.01.55001,000
BLS-LCS-0365-13-xxB03653656.83.42.01.5120042000
BLS-LCS-0380-03-xxA03803803.41.71.00.75120120
BLS-LCS-0380-13-xxB03803806.83.42.01.5360360
BLS-LCS-0385-02-xxA03853853.41.71.00.75100200
BLS-LCS-0385-11-xxB03853856.83.42.01.56251250
BLS-LCS-0390-03-xxA03903903.41.71.00.75250250
BLS-LCS-0390-12-xxB03903906.83.42.01.5750750
BLS-LCS-0395-03-xxA03953953.41.71.00.75270540
BLS-LCS-0395-12-xxB03953956.83.42.01.5810810
BLS-LCS-0400-03-xxA04004003.41.71.00.75265265
BLS-LCS-0400-12-xxB04004006.83.42.01.5795795
BLS-LCS-0400-17-xxB0400400105.04.63.4810810
BLS-LCS-0405-03-xxA04054053.41.71.00.75325325
BLS-LCS-0405-12-xxB04054056.83.42.01.5975975
BLS-LCS-0410-03-xxA04104103.41.71.00.75315315
BLS-LCS-0410-12-xxB04104106.83.42.01.5945945
BLS-LCS-0415-03-xxA04154153.41.71.00.75310310
BLS-LCS-0415-12-xxB04154156.83.42.01.5930930
BLS-LCS-0420-03-xxA04204203.41.71.00.75310310
BLS-LCS-0420-12-xxB04204206.83.42.01.5930930
BLS-LCS-0425-03-xxA04254253.41.71.00.75290290
BLS-LCS-0425-12-xxB04254256.83.42.01.5870870
BLS-LCS-0455-03-xxA04554553.41.71.00.75280560
BLS-LCS-0455-05-xxA0455455105.03.02.2350700
BLS-LCS-0470-03-xxA04704703.41.71.00.75200400
BLS-LCS-0470-15-xxB04704706.83.42.01.5600600
BLS-LCS-0490-01-xxA04904903.41.71.00.75140196
BLS-LCS-0505-03-xxA05055053.41.71.00.75135270
BLS-LCS-0505-12-xxB05055056.83.42.01.5250250
BLS-LCS-0530-03-xxA05305303.41.71.00.75100200
BLS-LCS-0530-15-xxB05305306.83.42.01.5300300
BLS-LCS-0560-03-xxA0560560 broadband4.42.21.31.0240288
BLS-LCS-0585-03-xxA0585585 broadband4.42.21.31.08282
BLS-LCS-0590-03-xxA05905903.41.71.00.7565130
BLS-LCS-0590-10-xxB0590590105.03.02.2200400
BLS-LCS-0617-03-xxA06176173.41.71.00.75280560
BLS-LCS-0617-10-xxB06176176.83.42.01.5600600
BLS-LCS-0625-03-xxA06256253.41.71.00.75280560
BLS-LCS-0656-03-xxA06566563.41.71.00.75280560
BLS-LCS-0656-07-xxB06566568.84.42.62.0800800
BLS-LCS-0680-02-xxA06806803.41.71.00.7575150
BLS-LCS-0700-01-xxA07007003.41.71.00.7551100
BLS-LCS-0720-01-xxA07207203.41.71.00.7573145
BLS-LCS-0740-03-xxA07407407.56.32.31.7200300
BLS-LCS-0740-10-xxB07407401512.64.63.4600900
BLS-LCS-0780-02-xxA07807803.41.71.00.75110220
BLS-LCS-0810-02-xxA08108103.41.71.00.75120240
BLS-LCS-0850-02-xxA08508503.41.71.00.75240480
BLS-LCS-0850-03-xxA08508503.41.71.00.75430860
BLS-LCS-0870-01-xxA08708703.41.71.00.75110220
BLS-LCS-0910-02-xxA09109103.41.71.00.75120240
BLS-LCS-0940-02-xxA09409403.41.71.00.75200400
BLS-LCS-0980-01-xxA09809803.41.71.00.753060
BLS-LCS-6500-03-xxA6500Glacier White 6,500K3.41.71.00.75180360
BLS-LCS-6500-15-xxB6500Glacier White 6,500K6.83.42.01.55401,080
BLS-LCS-5500-03-xxA5500Cool White 5,500K3.41.71.00.75170340
BLS-LCS-5500-12-xxB5500Cool White 5,500K6.83.42.01.5540540
BLS-LCS-4000-03-xxA4000Warm White 4,000K3.41.71.00.75180360

1. Type-A and Type-B LED sources have different installation drawings. The former does not include a cooling fan, whereas the latter does. When ordering an LED controller for a Type-B LED, please make sure to upgrade the AC/DC power adapter from the 'standard' 12V to 24V  (P/N: ACC-SLC-24VU). 2. Clear aperture diameter. Use these two-digit numbers to replace xx in the part number. 3. IntelliPulsing only available when working with BLS-SA02/04-US BioLED control modules. 4. Requires 3500mA current to achieve quoted output. Consider SLC-SA02-US or SLC-SA04-US.

Type-J BLS-LCS (high power, passively cooled with no cooling fan)

Part NumberTypeWavelength Code (xxxx)Wavelength
(nm)
Half Diverging Angle(deg.)1Output Power2 (mW)
BLS-LCS-0470-14-22-JJ04704701.7500
BLS-LCS-0540-14-22-JJ05405402.2500

1. Type-J BLS-LCS light sources only available in 22-mm clear aperture diameter. 2. Maximum CW output achievable with a BLS-3000-2 BioLED control module.

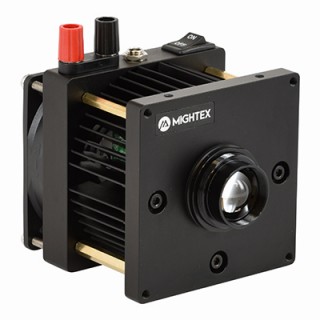

Type-H BLS-LCS (super high-power, with a cooling fan)

Part NumberTypeWavelength Code (xxxx)Wavelength
(nm)
Half Diverging Angle(deg.)Output Power2 (mW)
φ11mm1φ22mm1φ38mm1φ48mm1
BLS-LCS-0365-48-xxH0365365105.03.02.22,000
BLS-LCS-0405-50-xxH0405405105.03.02.22,500
BLS-LCS-0470-50-xxH0470470105.03.02.23,300
BLS-LCS-0525-60-xxH0525525105.03.02.21,300
BLS-LCS-0625-38-xxH0625625105.03.02.21,100
BLS-LCS-6500-33-xxH6500Glacier White 6,500K105.03.02.22,000

1. Clear aperture diameter. Use these two-digit numbers to replace xx in the part number. 2. Maximum CW output achievable with a BLS-13000-1 BioLED control module.



BioLED Light Source Solution Selection Guide



For more technical details and specifications, please check:

https://www.mightexbio.com/products/microscopy-leds/single-wavelength/
