Mightex BLS-series BioLED light sources are modularized fully-customizable turn-key solutions for optogenetics, fluorescence excitation, and other biophotonics applications. Precisely-timed and high-intensity light pulses are required in optogenetics experiments to activate channelrhodopsins (ChR2, ChR1 etc.) and halorhodopsins (NpHR) in order to excite and inhibit neurons. To meet these requirements, Mightex has developed a proprietary “IntelliPulsing” technology to allow BLS-series sources to output significantly higher power in pulse mode than what the LEDs are rated for in CW mode.
Features:
* High-power UV/VIS/NIR/white fiber-coupled LED’s
* Interchangeable fiber with SMA connector
* No moving parts in optical path
* Multiple mounting features for lab and OEM applications
* Optional LED controllers
* Compact, machined metal housing with integrated heat sink
* Locking electrical connector
Type-A FCS (passive cooling, no cooling fan)
| Wavelength Code | Description | Wavelength (nm) | Iop(mA) | Vop(V) | Typical Radiant Flux (mW) 1 (with a 400µm 0.22NA fiber) | Typical Radiant Flux (mW) (with a 400µm 0.39NA fiber) |
| 0000 | Cool White | 5,500K | 1000 | 3.9 | 3.2 | 10.1 |
| 0001 | Warm White | 4,000K | 1000 | 3.9 | 3.2 | 10.1 |
| 0002 | Glacier White | 6,500K | 1000 | 3.6 | 3.2 | 10.1 |
| 0003 | Warm White | 3,000K | 1000 | 2.8 | 2.8 | 8.8 |
| 0255 | Deep UV | 255 | 30 | 6.5 | 45µW | 80µW |
| 0265-001 | Deep UV | 265 | 350 | 6.3 | 400µW | N/A |
| 0275-001 | Deep UV | 275 | 600 | 6 | 700µW | N/A |
| 0280-001 | Deep UV | 280 | 500 | 5.8 | 400µW | N/A |
| 0295-001 | Deep UV | 295 | 600 | 5.8 | 500µW | N/A |
| 0300 | Deep UV | 300 | 500 | 6 | 300µW | N/A |
| 0310-001 | Deep UV | 310 | 350 | 5.8 | 360µW | N/A |
| 0325-001 | Deep UV | 325 | 500 | 5.4 | 220µW | N/A |
| 0340-001 | Deep UV | 340 | 500 | 4.3 | 0.6 | 1.1 |
| 0365-001 | UV 365nm | 365 | 1000 | 3.65 | 4.3 | 13.3 |
| 0380 | UV 380nm | 380 | 1000 | 3.2 | 2.8 | 5.6 |
| 0385-001 | UV 385nm | 385 | 1000 | 3.65 | 5.8 | 18 |
| 0390 | UV 390nm | 390 | 1000 | 3.1 | 5.8 | 11.6 |
| 0395 | UV 395nm | 395 | 1000 | 3.1 | 6.2 | 12.4 |
| 0400 | UV 400nm, 1W | 400 | 350 | 3.5 | 0.8 | 2.5 |
| 0400 | UV 400nm, 3W | 400 | 1000 | 3.1 | 6.1 | 12.2 |
| 0400 | UV 400nm, 4W | 400 | 1000 | 4.1 | 3.5 | 10.5 |
| 0405 | UV 405nm | 405 | 1000 | 3 | 7.5 | 15 |
| 0410 | 410nm | 410 | 1000 | 3 | 7.3 | 14.6 |
| 0415 | 415nm | 415 | 1000 | 3 | 7.2 | 14.4 |
| 0430 | 430nm | 430 | 500 | 3.8 | 2.9 | 5.8 |
| 0455 | 455nm | 455 | 1000 | 3.9 | 7 | 22 |
| 0470 | 470nm | 470 | 1000 | 3.9 | 7 | 14 |
| 0471 | 471nm | 471 | 350 | 3 | 2.1 | 4.2 |
| 0490 | 490nm | 490 | 350 | 3.5 | 3.2 | 6.4 |
| 0505 | 505nm | 505 | 1000 | 3.9 | 3.5 | 11 |
| 0530 | 530nm | 530 | 1000 | 3.9 | 3.5 | 11 |
| 0560 | 560nm broadband | 560 | 700 | 2.9 | 5.5 | 11 |
| 0590 | 590nm | 590 | 1000 | 3.2 | 1.2 | 3.8 |
| 0617 | 617nm | 617 | 1000 | 3 | 6.5 | 20 |
| 0625 | 625nm | 625 | 1000 | 3 | 6.5 | 20 |
| 0656 | 656nm | 656 | 1000 | 3.1 | 6.5 | 20 |
| 0680 | 680nm | 680 | 600 | 2.7 | 1.4 | 4.4 |
| 0700 | 700nm | 700 | 500 | 2.1 | 0.6 | 1.2 |
| 0720 | 720nm | 720 | 600 | 2.2 | 0.9 | 1.8 |
| 0740 | 740nm | 740 | 1000 | 2.9 | 3.6 | 11 |
| 0780 | NIR 780nm | 780 | 800 | 2.5 | 2.2 | 6.9 |
| 0810 | NIR 810nm | 810 | 800 | 2.2 | 1.5 | 3 |
| 0850 | NIR 850nm | 850 | 1000 | 2.1 | 4 | 12.6 |
| 0870 | NIR 870nm | 870 | 700 | 1.9 | 1.4 | 4.4 |
| 0910 | NIR 910nm | 910 | 1000 | 1.9 | 1.5 | 4.7 |
| 0940 | NIR 940nm | 940 | 1000 | 2.4 | 4 | 12.6 |
| 0980 | NIR 980nm | 980 | 500 | 1.4 | 0.4 | 0.8 |
Type-B FCS (with a cooling fan)
| Wavelength Code | Description | Peak Wavelength (nm) | Iop(mA) | Vop(V) | Typical Radiant Flux (mW) 1 (with a 400µm 0.22NA fiber) | Typical Radiant Flux (mW) (with a 400µm 0.39NA fiber) |
| 0470-100 | Blue | 470 | 3000 | 4.6 | 11 | 21 |
| 0530-100 | Green | 530 | 2400 | 4.9 | 8 | 15 |
| 0540-100 | Broadband Green | 540 | 3000 | 4.6 | 10 | 20 |
| 0625-100 | Red | 625 | 2400 | 2.9 | 9 | 22 |
Type-H Super High-Power FCS (with a cooling fan)
| Wavelength Code | Description | Peak Wavelength (nm) | Iop(A) | Vop(V) | Typical Radiant Flux (mW) 1 (with a 1000µm 0.22NA fiber) | Typical Radiant Flux (mW) (with a 1000µm 0.39NA fiber) |
| 0365-200 | UV | 365 | 12 | 4 | 60 | 180 |
| 0405-200 | UV | 405 | 13 | 3.8 | 70 | 210 |
| 0470-200 | Blue | 470 | 13 | 3.8 | 90 | 280 |
| 0525-200 | Green | 525 | 13 | 4.6 | 50 | 160 |
| 0560-200 | 560 broadband | 560 | 18 | 3.8 | 90 | 280 |
| 0625-200 | Red | 625 | 13 | 2.9 | 40 | 130 |
| 0730-200 | NIR | 730 | 18 | 5.9 | 90 | 170 |
| 6500-200 | Glacier White | 6500K | 9 | 3.7 | 60 | 180 |

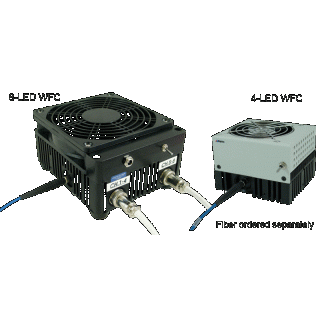

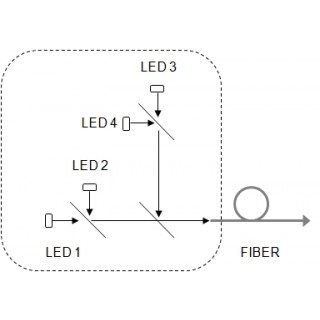

Multi-Wavelength Fiber-Coupled LED Sources (up to 8 wavelengths) HIGH POWER CONFIGURATION
| Wavelength Code | Wavelength (nm) | Iop(mA) | Vop(V) | Typical Radiant Flux (mW) (1) | ||
| 2-wavelength | 4-wavelength | 6 or 8 wavelength | ||||
| 0365 | 365 | 1000 | 3.65 | 3.6 (11.1) | 3.2 (10.0) | 2.9 (9.0) |
| 0380 | 380 | 1000 | 3.2 | 2.3 (4.6) | 1.9 (3.8) | 1.7 (3.4) |
| 0385 | 385 | 1000 | 3.65 | 4.8 (15.0) | 4.3 (13.5) | 3.9 (12.2) |
| 0390 | 390 | 1000 | 3.1 | 4.8 (9.6) | 4.3 (8.6) | 3.9 (7.8) |
| 0395 | 395 | 1000 | 3.1 | 5.1 (10.2) | 4.1 (8.2) | 3.7 (7.4) |
| 0400 | 400 | 1000 | 3.8 | 4.4 (13.8) | 4.0 (12.6) | 2.0 (6.3) |
| 0405 | 405 | 1000 | 3 | 6.2 (12.4) | 5.0 (10.0) | 4.5 (9.0) |
| 0410 | 410 | 1000 | 3 | 6.2 (12.4) | 5.0 (10.0) | 4.5 (9.0) |
| 0415 | 415 | 1000 | 3 | 6.1 (12.2) | 4.9 (9.8) | 4.4 (8.8) |
| 0420(discontinued) | 420 | 500 | 3.8 | 1.6 (5.0) | 1.4 (4.4) | 1.3 (4.1) |
| 0420(discontinued) | 420 | 1000 | 3.8 | 4.1 (8.2) | 3.4 (6.8) | 3.1 (6.2) |
| 0425 | 425 | 1000 | 3 | 5.3 (10.6) | 4.3 (8.6) | 3.8 (7.6) |
| 0455 | 455 | 1000 | 3.9 | 5.6 (17.6) | 5.1 (16.0) | 4.5 (14.1) |
| 0470 | 470 | 1000 | 3.9 | 6.0 (18.8) | 5.4 (17.0) | 4.9 (15.4) |
| 0490 | 490 | 700 | 3.7 | 2.2 (4.4) | 1.8 (3.6) | 1.5 (3.0) |
| 0505 | 505 | 1000 | 3.9 | 2.8 (8.8) | 2.2 (7.9) | 1.7 (5.3) |
| 0530 | 530 | 1000 | 3.9 | 2.4 (7.5) | 2.2 (6.9) | 1.9 (6.0) |
| 0560 | 560 | 700 | 3.9 | 1.5 (3.0) | 1.3 (2.6) | 1.0 (2.0) |
| 0590 | 590 | 1000 | 3.9 | 1.3 (4.1) | 1.2 (3.8) | 1.1 (3.5) |
| 0617 | 617 | 1000 | 3.9 | 5.2 (16.3) | 4.7 (14.8) | 4.2 (13.2) |
| 0625 | 625 | 1000 | 3.9 | 6.1 (19.2) | 5.5 (17.3) | 5.0 (15.7) |
| 0656 | 656 | 1000 | 2.7 | 5.2 (16.3) | 4.7 (14.8) | 4.2 (13.2) |
| 0680 | 680 | 600 | 2.7 | 1.0 (2.0) | 0.8 (1.6) | 0.5 (1.0) |
| 0700 | 700 | 500 | 2.1 | 0.4 (0.8) | 0.2 (0.4) | 90µW (180µW) |
| 0720 | 720 | 600 | 2.2 | 0.6 (1.2) | 0.4 (0.8) | 0.2 (0.4) |
| 0740 | 740 | 1000 | 2.9 | 2.4 (7.5) | 2.2 (6.9) | 1.9 (6.0) |
| 0780 | 780 | 800 | 2.5 | 1.6 (3.2) | 1.1 (2.2) | 0.7 (1.4) |
| 0810 | 810 | 800 | 2.2 | 1.0 (2.0) | 0.8 (1.6) | 0.5 (1.0) |
| 0850 | 850 | 1000 | 2.1 | 3.2 (10.0) | 2.9 (9.1) | 2.6 (8.2) |
| 0870 | 870 | 700 | 2 | 2.4 (7.5) | 2.2 (6.9) | 1.9 (6.0) |
| 0940 | 940 | 1000 | 2.1 | 3.2 (10.0) | 2.9 (9.1) | 2.6 (8.2) |
| 0980 | 980 | 500 | 1.4 | 0.3 (0.6) | 0.1 (0.2) | 80µW (160µW) |
| 6500 | glacier white 6,500K | 1000 | 3.6 | - | - | - |
| 5500 | cool white 5,500K | 1000 | 3.9 | - | - | - |
| 4000 | warm white 4,000K | 1000 | 3.9 | - | - | - |
| Wavelength Code | Wavelength (nm) | Iop(mA) | Vop(V) | Radiant Flux 1(mW) | |
| 2-wavelength | 4-wavelength | ||||
| 0365 | 365 | 1000 | 3.65 | 1.7 | 0.8 |
| 0380 | 380 | 1000 | 3.2 | 1.1 | 0.4 |
| 0385 | 385 | 1000 | 3.65 | 2.3 | 1.1 |
| 0390 | 390 | 1000 | 3.1 | 2.1 | 0.8 |
| 0395 | 395 | 1000 | 3.1 | 2.3 | 1.1 |
| 0400 | 400 | 1000 | 3.8 | 1.1 | 0.5 |
| 0405 | 405 | 1000 | 3 | 2.8 | 1 |
| 0410 | 410 | 1000 | 3 | 2.8 | 1 |
| 0415 | 415 | 1000 | 3 | 2.7 | 0.9 |
| 0420(discontinued) | 420 | 500 | 3.8 | 0.8 | 0.4 |
| 0420 | 420 | 1000 | 3.8 | 1.8 | 0.5 |
| 0425 | 425 | 1000 | 3 | 2.4 | 0.9 |
| 0455 | 455 | 1000 | 3.9 | 2.7 | 1.3 |
| 0470 | 470 | 1000 | 3.9 | 2.9 | 1.4 |
| 0490 | 490 | 700 | 3.7 | 1 | 0.3 |
| 0505 | 505 | 1000 | 3.9 | 1.4 | 0.6 |
| 0530 | 530 | 1000 | 3.9 | 0.8 | 0.4 |
| 0560 | 560 | 700 | 3.9 | 0.7 | 0.3 |
| 0590 | 590 | 1000 | 3.9 | 0.6 | 0.3 |
| 0617 | 617 | 1000 | 3.9 | 2.5 | 1.2 |
| 0625 | 625 | 1000 | 3.9 | 2.5 | 1.2 |
| 0656 | 656 | 1000 | 2.7 | 2.5 | 1.2 |
| 0680 | 680 | 600 | 2.7 | 0.5 | 0.2 |
| 0700 | 700 | 500 | 2.1 | 0.2 | 90µW |
| 0720 | 720 | 600 | 2.2 | 0.3 | 0.1 |
| 0740 | 740 | 1000 | 2.9 | 1.2 | 0.7 |
| 0780 | 780 | 800 | 2.5 | 0.7 | 0.3 |
| 0810 | 810 | 800 | 2.2 | 0.5 | 0.2 |
| 0850 | 850 | 1000 | 2.1 | 1.5 | 0.7 |
| 0870 | 870 | 700 | 2 | 1.1 | 0.5 |
| 0940 | 940 | 1000 | 2.1 | 1.5 | 0.7 |
| 0980 | 980 | 500 | 1.4 | 0.1 | 70µW |
| 6500 | glacier white 6,500K | 1000 | 3.6 | 1.2 | 0.6 |
| 5500 | cool white 5,500K | 1000 | 3.9 | 1.2 | 0.6 |
| 4000 | warm white 4,000K | 1000 | 3.9 | 1.2 | 0.6 |
Select LED Configuration
For more technical details and specifications, please check:
https://www.mightexbio.com/products/bioled-sources/fiber-coupled-leds/
