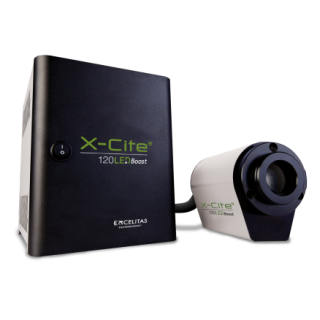

X-Cite 120LED Boost High-Power (LED조명, 광원) > X-cite

X-Cite 120LED Boost High-Power (LED조명, 광원) 요약정보 및 구매

The X-Cite® White LED 조명

The X-Cite® White LED 조명

LED Illumination - More Powerful Than Ever

Performance. Precision. Reliability.

1.High power, broad-spectrum fluorescence excitation

2.Exceptional field uniformity at the specimen

3.Instant ON/OFF without mechanical shuttering

4.Ergonomic manual controller and built-in USB interface

5.Long-life, zero maintenance technology

6.Quiet, vibration-free thermal management

Mouse kidney section stained with DAPI, Alexa Fluor® 488 WGA BPAE cells labeled with MitoTracker® Red CMXRos, Alexa

and Alexa Fluor® 568 phalloidin. Fluor 488 phalloidin and DAPI.

Technical SPECIFICATIONS X-Cite 120LEDBoost

Technical SPECIFICATIONS X-Cite 120LEDBoost
Wavelength Range	370-700nm
Power Supply	Universal input 100-240VAC, 50/60Hz
Power Consumption	230W
LED ON/OFF Response Times	50μs TTL 1ms USB
Control Options	Manual - speedDIAL (1% increments) TTL compatible - BNC input RS-232 commands (SDK available) USB

	powerCUBE	LED Head	speedDIAL
Height	213mm(8.4")	116mm(4.6")	59mm(2.3")
Width	173mm(6.8")	90mm(3.5")	80mm(3.1")
Depth	260mm(10.2")	166mm(6.5")	112mm(4.4")
Weight	4.8kg (10.6lbs)		0.3kg(0.7lbs)
Certificatioins	CE marked; certified to IEC, Canadian and US standards; RoHS compliant
Warranty	LEDs - 25,000 hours (or 3 years); all other X-Cite 120LED components 1 year, parts and labor

품명	X-Cite 120LED
모델명	Fluorescence Illumination
법에 의한 인증·허가 등을 받았음을 확인할 수 있는 경우 그에 대한 사항	상품페이지 참고
제조국 또는 원산지	미국
제조자	Excelitas (X-Cite)
A/S 책임자와 전화번호 또는 소비자상담 관련 전화번호	02-355-5963
