Solid State Nd:YAG Pulsed Laser (Oscillator -Amplifier) LF117

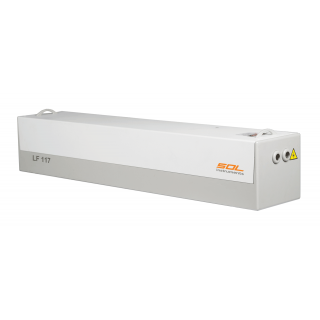

LF117 photo

  • Reliable and high performance laser
  • High stability of output parameters
  • Super-stable solid rod construction of the laser head
  • Reliable autonomous cooling system liquid-air
  • Thermostabilization and hermetic sealing of all crystals
  • PC control of output parameters and all laser units
  • The laser body of a solid state pulsed Nd:YAG laser is sealed and the beam paths are shielded to protect optical components against dust and moisture.
  • The solid rod construction of the laser ensures long-term stability of output parameters irrespective of outer mechanical stresses or environmental influences
  • All nonlinear crystals, used in the laser head, are placed in thermostats to ensure high conversion efficiency of harmonics and also high stability of output energy at various frequencies.
  • Optical scheme of solid-state pulse Nd:YAG laser is configured on the principle "Oscillator -Amplifier" that allows high output energy to be established at all harmonics
  • The cooling system of the laser is constructed by the principle water-air.
  • Solid-state pulse Nd:YAG laser, model LF117 is an excellent pump source for tunable lasers, manufactured by SOL instruments as well as by other manufacturers

System unit (power and cooling units)

  • single phase electric power supply
  • high efficient power supply unit with power corrector
  • electric power supply of add-on devices
  • constant power supply of thermostats

stojka pitanija i ohlajdenia

Power supply

  • single phase electric power supply
  • essential interlocks
  • power corrector

blok pitanija


Cooling system

  • single phase electric power supply
  • liquid/air (absence of external loop of water)
  • high efficiency of cooling, up to 1200W
  • embedded deionization filter
  • stability of temperautre at 0.05 °С

sistema ohlajdenia





 Energy per pulse:


 1064 nm

 850 mJ

 532 nm

 480 mJ

 *355 nm

 150 mJ

 *266 nm

 125 mJ

 Pulse width (1064 nm):

 10 - 14 ns

 Pulse repetition rate:

 1 - 10 (20) Hz

 Beam divergence (FW 0,86 M):

 < 0.8 mrad

 Beam diameter:

 8.0 mm


 1.0 ns

 СPulse to pulse energy stability for 98% of pulses (1064 nm):

 ± 2.5% ?


 Electrical requirements:

 220 V ± 10% (110 V), 50-60 Hz; 1000 W (max)

 Overall size (LхWхH):


 Laser head:

 720 х 136 х 156 mm

 Power supply:

 435 х 485 х 245 mm

 Cooling system:

 435 х 485 х 285 mm




* Option
