Description

The pE-100 system has been developed for applications requiring a single LED excitation wavelength.  It is perfect for clinical applications such as routine screening (e.g. using Auramine for Tuberculosis), for research applications requiring precise intensity control and fast-switching, or for electrophysiology applications where light has to be delivered to a specific location.  The user can select from 20 different LED wavelengths, ranging from the near-UV at 365nm to the near-IR

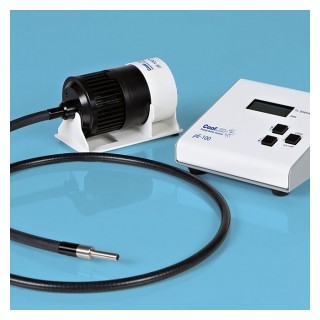

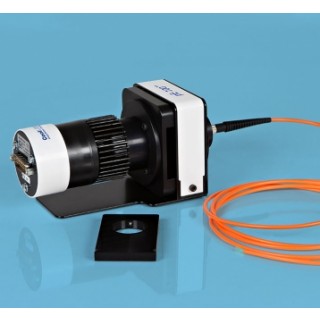

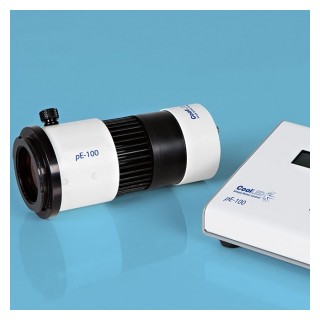

At 770nm.  The system comprises a pE-100 LED Light Source, control pod, and power supply.  There are three standard pE-100 configuration options: Direct-fit (pE-100) for connecting to a microscope by selecting from a range of microscope adaptors  which covers all current and most older models.  A simple once only adjustment will allow optimisation to the optical path of the microscope. Liquid Light Guide (pE-100^{light guide}) with a fixed 3mm diameter, liquid light guide Fiber (pE-100^fiber) with an SMA connection for accepting multimode fibers.  The pE-100^fiber has been designed with efficient coupling into a wide range of multimode fibers.  The pE-100^fiber also includes excitation filter holders. Combining pE-100s: Direct fit configuration pE-100 units can be combined using the pE-Combiner for applications requiring a second LED wavelength with independent control and triggering. Liquid light guide or multimode fiber using a fixed two wavelength configuration can be specified.  Two pE-100 Light Sources are combined, providing independent control and triggering. For further information go to the Downloads tab

Features

The pE-100 offers:

* Broadest LED spectrum available: 365-770nm replaces metal halide or mercury

* Compatible with existing single and multi-band filter sets no need to buy new filters

* Instant on/off  - no shutters required, no warm up or cool down

* Simple to fit, simple to use no alignment, a once only adjustment

* Stable & repeatable reliable and consistent results

* Wide range of microscope adaptors fits most microscopes

* Precise intensity control in 1% steps (0-100%) no ND filters required

* Excellent uniformity over field of view fixed and stable, no alignment necessary

* Long lifetime expected to exceed 25,000 hours of operating time

Specification

Power requirements 100-240V a.c. 50/60Hz, 0.7A Power consumption 2.2W (standby) 25W (full intensity) Dimensions pE-100 Light Source (direct fit): 60mm(w) x 170mm(d) x 70mm(h) - Weight 0.42kg pE-100^{light guide} Light Source: 52mm(w) x 95mm(d) x 52mm(h) Weight 0.42kg pE-100^fiber Light Source: 76mm(w) x 165mm(d) x 80mm(h) - Weight 0.42kg Combined 2 x pE-100^fiber:  190mm(w) x 220mm(d) x 190mm (h) Weight 1.5kg pE-100 Control Pod: 102mm(w) x 110mm(d) x 50mm(h) - Weight 0.55kg pE-100 Power Supply: 55mm(w) x 95mm(d) x 40mm(h) Weight 0.19kg Environment & Safety LED products are more sustainable and energy efficient than conventional illuminators. CoolLED's products have the following benefits:

* Mercury-free

* Energy Efficient: 80% less power

* Long lifetime (25,000 operating hours)

* No bulb replacements

* Reduced risk of eye damage

* Quiet operation

* No special disposal regulations

Warranty System = 12 months, LEDs = 36 months
