- Reliable and easy in use laser
- Long-term stability of output parameters
- Super-stable engineering design of a laser head
- Crystal thermal stabilization and sealing
- Control of laser output parameters and laser systems
- PC - controlled
DF251 - laser is used as a dual pulse source with variable delay between the pulses. APPLICATIONS- pump source of tunable lasers
- LIBS
- LIF
- DIAL
- PIV
- LIDAR
BENEFITS- high stability of output parameters
- low-power device
- without water cooling
- SHG,THG,FHG availability
- simultaneous operation at different harmonics
- portable accumulator power supply
- delay regulation between the pulses with a step of 1 microsecond
- jitter less than 1ns
- PC -controlled
Pulse repetition rate: |
20 Hz |
Energy: |
|
1064 nm |
110 (55 x 2) mJ |
*532 nm |
60 mJ |
*355 nm |
15 mJ |
*266 nm |
10 mJ |
Pulse to pulse energy stability for 98% of pulses: |
1 % |
Pulse width: |
12 - 14 ns |
Beam divergence: |
< 1.2 mrad |
Beam diameter: |
5 mm |
Jitter: |
<± 1.0 ns |
Beam pointing stability: |
< 50 ?rad |
Delay between pulses: |
1 - 20 ?s |
Diode lifetime: |
> 109 pulses? |
Power requirements: |
90 - 240 V, 220 W, 50 - 60 Hz |

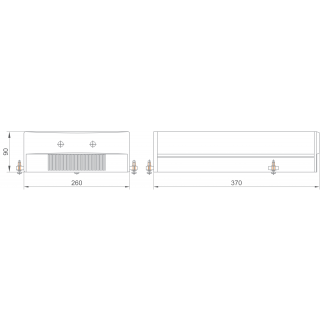

Overall size (L x W x H): |
|
Laser head: |
430 х 250 х 90 mm |
Power supply: |
364 х 147 х 391 mm |
Weight: |
|
Laser head: | 9.4 kg | Power supply: |
7.6 kg |
* Option |
