Description

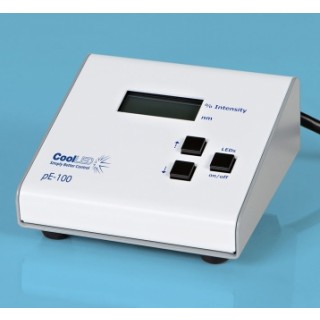

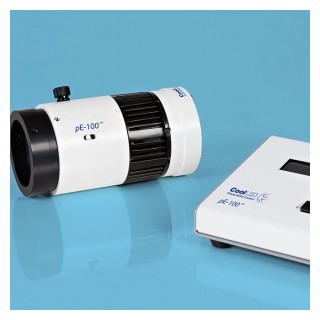

The pE-100^wht is a compact and simple-to-use LED illumination system for transmitted light applications and comprises a pE-100^wht LED Light Source, control pod, and power supply.  The user is given instant on/off and intensity control in 1% steps from the manual control pod which can be positioned close at hand.  Remote control is available via a TTL trigger.

The system uses a new LED technology which has a spectrum closely matching halogen.  Previous LED technology offered illumination which was weak at longer wavelengths. This made the red element of images appear faint and caused colours to lose their clarity.

When adjusting the intensity of the pE-100^wht, the balance between the colours remains constant so there is no need to make adjustments to the colour balance that is necessary when using halogen.  In addition, the  pE-100^wht does not produce unwanted light in the UV which makes it a safer product for the user as risk of eye damage is significantly lower.

For further information go to the Downloads tab

Features

The pE-100^wht offers:

* Spectral performance matched to 100W halogen familiar images

* No variation in colour across intensity range no need to colour balance

* Replaces 100W halogen lamp housing on most current and older microscopes quick & easy exchange

* No unwanted UV reduced risk of eye damage

* Instant on/off  - no shutters required, no warm up or cool down

* Simple to fit, simple to use no need to align

* Stable & repeatable reliable and consistent results

* Wide range of microscope adaptors fits most microscopes

* Precise intensity control in 1% steps (0-100%) no ND filters required

* Excellent uniformity over field of view fixed and stable, no alignment necessary

* Long lifetime expected to exceed 50,000 hours of operating time

Specification

Power requirements
100-240V a.c. 50/60Hz, 0.7A

Power consumption
1W (standby)
20W (full intensity)

Dimensions
pE-100^wht Light Source (direct fit): 66mm(diameter) x 128mm(d) Weight 0.42kg
pE-100^wht Control Pod: 102mm(w) x 110mm(d) x 50mm(h) - Weight 0.55kg
pE-100^wht Power supply: 55mm(w) x 95mm(d) x 40mm(h) - Weight 0.19kg

Environment & Safety
LED products are more sustainable and energy efficient than conventional illuminators. CoolLED's products have the following benefits:

* Mercury-free

* Energy Efficient: 80% less power

* Long lifetime (25,000 operating hours)

* No bulb replacements

* Reduced risk of eye damage

* Quiet operation

* No special disposal regulations or issues

Warranty
System = 12 months, LEDs = 36 months
