HRS-Series Basic Spectrometers > Mightex

Compact CCD spectrometers are widely used in process control, environment monitoring,

and scientific research applications.

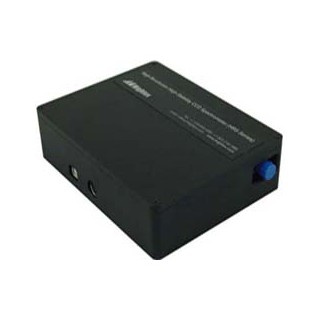

Mightex HRS series compact CCD spectrometers features a high-resolution

100mm Czerny-Turner optical platform coupled with a Toshiba 3648-element CCD array.

The optimized optical path yields both high spectral resolution and high light collection efficiency.

Wavelength and amplitude stability is often a critical requirement for many spectrometer applications.

All optical components in the HRS series spectrometers are mounted directly on a single-piece

base without using screws. A box enclosure structure further increases stiffness of the base.

The proprietary mounting method ensures high stability over time and temperature change.

The spectrometer takes input through a SMA connector port. Usually a fiber patch cord is used to

transmit light into the spectrometer.

However it’s also possible to send the input light directly into the spectrometer through the input slit.

Input ports are interchangeable so that ports with different slit size (or without slit) can be used.

Note that wavelength calibration is necessary after changing the input port.

A 16-bit DAC is used to convert the analog signal from the CCD array into a digital stream.

The electronics hardware also includes trigger input and four programmable digital I/Os for

interfacing with other equipment such as a light source.

The spectrometer is controlled through a USB2.0 interface which also supplies all the electric

power needed to operate the spectrometer.

Standard software package includes a full-featured PC software as well as a software

development kit (SDK) for further software development.

Low level USB protocol is also provided in the software package,

which supports embedded system based applications.

SPECIFICATIONS

Spectral Resolution (FWHM, nm) vs. Slit Width (?m)

Recommended PC System Configuration
Processor:                    Pentium 4 1.8GHz or higher
Operating System:        Windows 2000, XP, Vista, Windows 7 and 8
RAM:                              512M or greater
Hard Disk Space:           50M for software installation, plus additional space for storing data

USB Host Controller:       USB2.0 Enhanced Controller, which supports USB2.0 High-Speed. (480Mbps).

1. Industrial Color Measurement Solution

2. Reflectance Measurement Solution

3. Transmission & Absorption Measurement Solution

Standard Packing List:

1. 1x Spectrometer
2. 1x USB Cable

3. 1x CD (containing User's Guide, and Windows-based application software with GUI etc)

Note: (1) The fiber patch cord is NOT included and, if needed, please order it separately here.; and (2) The trigger cable ACC-CAM-DIN8 (if required) also needs to be ordered separately here.

Software download

Mightex HRS-series software package download (.zip, 14.2MB)
